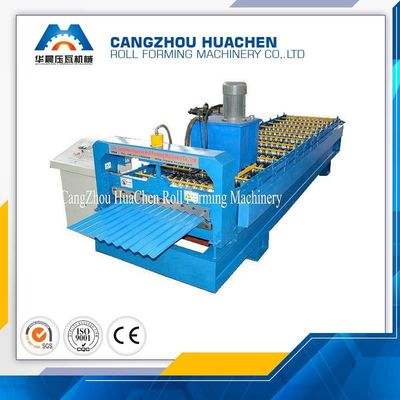

Color Steel Galvanized Metal Aluminum Roof Tile Roll Forming Machine ISO Approval

Color Steel Galvanized Metal Aluminum Roof Tile Roll Forming Machine ISO Approval
Color Steel Galvanized Metal Aluminum Roof Tile Roll Forming Machine ISO Approval

Gambar besar :  Color Steel Galvanized Metal Aluminum Roof Tile Roll Forming Machine ISO Approval

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC17
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 8000-29000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Color Steel Galvanized Metal Aluminum Roof Tile Roll Forming Machine ISO Approval

Deskripsi
Producing Speed (m/min): 8-10 Hydraulic station power(KW): 9
Uncoiler motor power: 2.2 KW Total power: 21.2 KW
Cahaya Tinggi:

sheet metal rolling equipment

,

roof tile roll forming machine

CostPro panel lines

Today the Chinese manufactured panel roll formers are making most world’s steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.



However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.



Now you don’t have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.



What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:



We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles





Brief introduction



This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.



Technical Parameters



NO Item Para Memo

1



Suitable material Type Color steel sheet
Thickness (mm) 0.5-0.6
Yield Strength (Mpa) 230-300
Width (mm) 1200
2 Producing Speed (m/min) 8-10 including cutting time
3

Forming main

motor power(KW)

7 Depend on actual design
4 Hydraulic station power(KW) 9 Depend on actual design
5

Uncoiler hydraulic

motor power

3 Depend on actual design
6 Uncoiler motor power 2.2 Depend on actual design
7 Total power 21.2 Depend on actual design
8 Power AC380V,50Hz,3 Phase According to customer
9 Dimension (L×W×H, m) 20×3×2 Depend on actual design



Components



Name Model/Name Quantity Technical Description
1. Decoiler system Arm type automatic decoiler (With ultrasonice control) 1set Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.
2. Main forming system Pre-shearing device 1set

1.Roller material:No.45 steel with surface hard chrome painted.

2. Roller shaft material: No.45

3. Roller inner supporting structure type: guide column

4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear

5.Cutting blade material Cr12 quenched treatment

6.Punching die material adopts No.45 steel with nitride treatment.

Feeding guide device 1set
Film covering device 1set
Roll forming system 1set
Pressing system 2set
Post-cutting device 1set
Complete safety cover 1set
3. Output system Support table 2set For supporting the finished plate
4. Hydraulic system 1set Separated hydraulic station for the main machine and decoiler.
5. Electric control system 1set

1. PLC Control, encoder automatic cutting in length

2. Operation stage: Touch screen+ button

3. AC frequency for adjusting the speed











Working process



Decoil →Guiding system →Roll forming →Punch to length→Cut to length →Output the finished productsColor Steel Galvanized Metal Aluminum Roof Tile Roll Forming Machine ISO Approval 0Color Steel Galvanized Metal Aluminum Roof Tile Roll Forming Machine ISO Approval 1



CostPro panel lines

Today the Chinese manufactured panel roll formers are making most world’s steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.



However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.



Now you don’t have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.



What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:



We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles





Brief introduction



This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.



Technical Parameters



NO Item Para Memo

1



Suitable material Type Color steel sheet
Thickness (mm) 0.5-0.6
Yield Strength (Mpa) 230-300
Width (mm) 1200
2 Producing Speed (m/min) 8-10 including cutting time
3

Forming main

motor power(KW)

7 Depend on actual design
4 Hydraulic station power(KW) 9 Depend on actual design
5

Uncoiler hydraulic

motor power

3 Depend on actual design
6 Uncoiler motor power 2.2 Depend on actual design
7 Total power 21.2 Depend on actual design
8 Power AC380V,50Hz,3 Phase According to customer
9 Dimension (L×W×H, m) 20×3×2 Depend on actual design



Components



Name Model/Name Quantity Technical Description
1. Decoiler system Arm type automatic decoiler (With ultrasonice control) 1set Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.
2. Main forming system Pre-shearing device 1set

1.Roller material:No.45 steel with surface hard chrome painted.

2. Roller shaft material: No.45

3. Roller inner supporting structure type: guide column

4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear

5.Cutting blade material Cr12 quenched treatment

6.Punching die material adopts No.45 steel with nitride treatment.

Feeding guide device 1set
Film covering device 1set
Roll forming system 1set
Pressing system 2set
Post-cutting device 1set
Complete safety cover 1set
3. Output system Support table 2set For supporting the finished plate
4. Hydraulic system 1set Separated hydraulic station for the main machine and decoiler.
5. Electric control system 1set

1. PLC Control, encoder automatic cutting in length

2. Operation stage: Touch screen+ button

3. AC frequency for adjusting the speed











Working process



Decoil →Guiding system →Roll forming →Punch to length→Cut to length →Output the finished products



Our Services



a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2.After Sevice

3.a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
