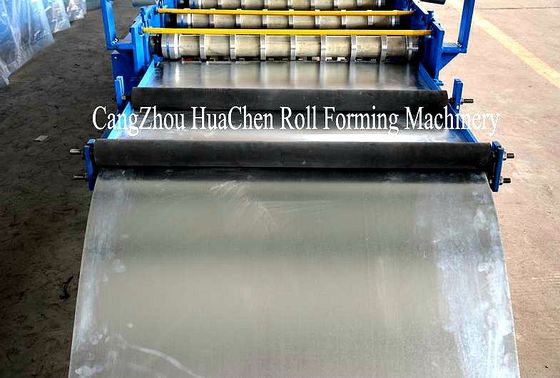

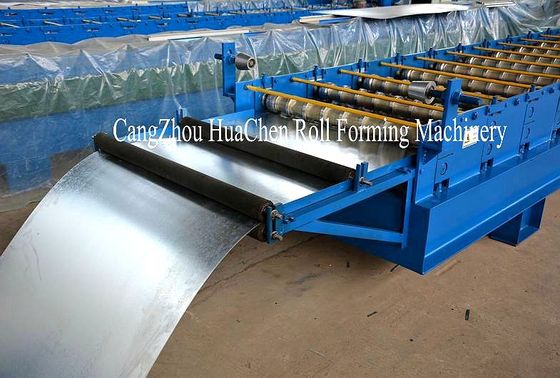

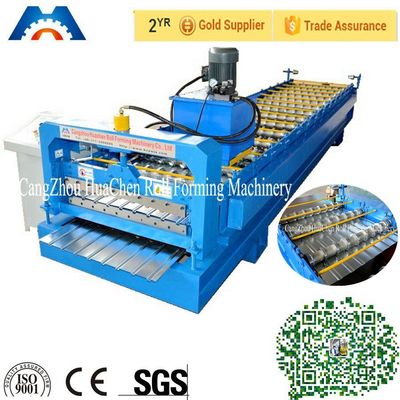

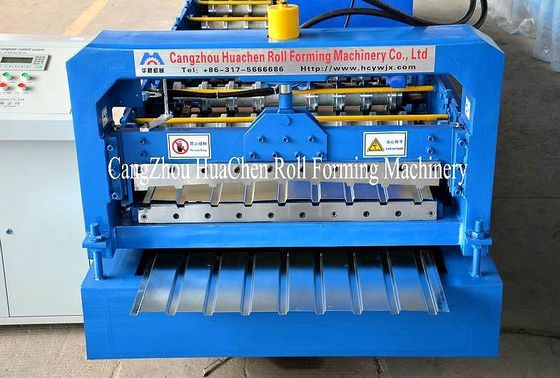

5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting

5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting

Being counted amongst the most prominent entities of the market, we are engaged in offering a best quality range of Metal Wall Panel Roll Forming Machine which finds application in production of false ceiling section profiles, cable trays and DIN rails. The offered roll forming roofing product is valued for easy usage, high strength, corrosion & thermal resistance and easy installation. This Metal Wall Panel Roll Forming Machine is manufactured at our state-of-the-art manufacturing unit using high grade raw materials and cutting-edge technology in line with global set industry norms.

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate:1250mm

3. Rollers: 10 rows

4. Dimensions: 5.3*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Description: Metal Profiling Wall Panel Roll Forming Machine With Hydraulic Precut

Main parameter

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Application: Metal Profiling Wall Panel Roll Forming Machine With Hydraulic Precut

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support
