Detail produk:
|
| Penggunaan: | Pejantan dan lacak | Jenis: | Peralatan Roll Forming Dingin |
|---|---|---|---|
| ketebalan: | 0,5-1mm | Kapasitas: | 20-40M/MIN |
| Kekuatan: | 4,5+3kw | Ketebalan pelat: | 0,3-0,6 mm |
| Cahaya Tinggi: | pejantan logam dan mesin pembuat rol track,pejantan logam iso dan mesin pembuat roll track,mesin roll pembentuk stud kecepatan tinggi |
||

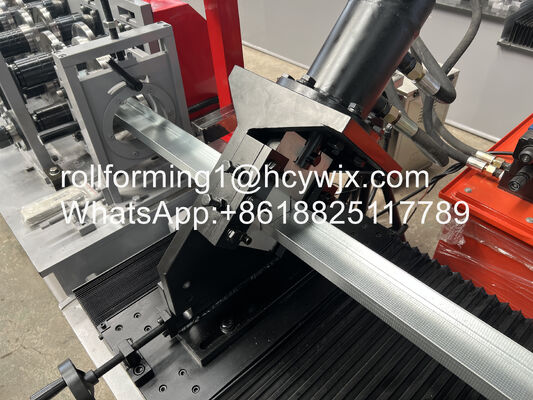

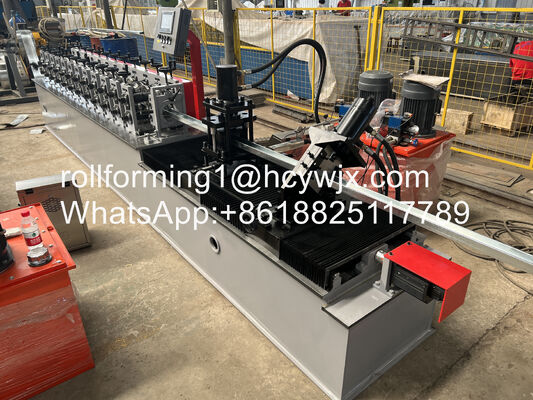

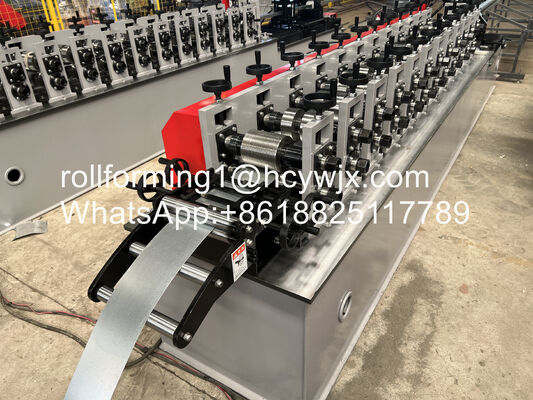

Metal Stud C Channel Cold Roll Forming Machine Prices/ c light keel steel machine
Technology parameter of metal stud light keel cold roll forming machine
| No. | Main Parameter of keel roll forming machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Rollers | 10 rows |
| 3 | Dimensions | 5500*1000*1300mm |
| 4 | Power | 5.5+4kw |
| 5 | Thickness of the plate | 7-1.2mm |
| 6 | Productivity | 0-35m/min |
| 7 | Diameter of the shaft | ∅50mm |
| 8 | Material of the roller | Cr12 Mov |
| 9 | Control system | integrated circuit |
| 10 | Material of the shaft | high grade 45# steel ,heated and quenched ,cylindrical grinding |
Producing process:
Decoiler -active feeding-forming -caculate length --automatic cutting --product
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: My current machine rollers need to be replaced. Would you be able to assist me?
A: Yes. Send us your profile and specifications then we will manufacture the rollers for you
Q: What kind of controls do you use on your machines?
A: AMS, Delta, Schneider, Siemens, and Mitsubishi
Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 185 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $100~150/days
