Detail produk:
|
| Color: | blue | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cutting |
| per month: | 30 sets | workers: | 100 |
| Cahaya Tinggi: | metal Roll Forming equipment,steel frame roll forming machine |
||

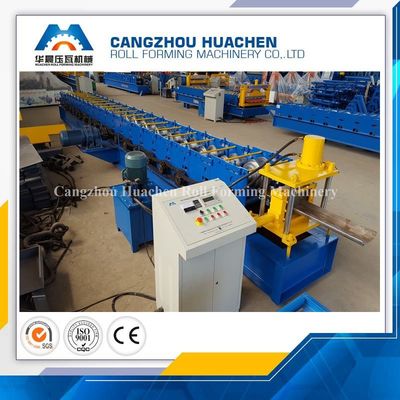

Door frame roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machine is a complete production line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.
Main Technical Parameters of Door Frame Roll Forming Machines:
| No. | Main Parameter of Door Frame Roll Forming Machines | |
| 1 | Suitable to process | Color steel plate/galvanized steel plate/or aluminium steel plate |
| 2 | Width of the plate | 260/310mm |
| 3 | Rollers | 13rows |
| 4 | Dimensions | 7500*1450*1510mm |
| 5 | Power | 5.5+4kw |
| 6 | Thickness of the plate | 0.6-1.2mm |
| 7 | Productivity | 10-15m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 3.6T |
| 10 | Voltage | 380V 50Hz 3phases or as your requirement |
| 11 | Material of the cutting plate | Cr12 |
| 12 | Hydraulic | 40# |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
1. Main machine and un-coiler are nude in container. (If need we can also packed with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper coverage
3. All machines need one 20' or 40'container to hold.
4. We can do the packaging according to your need.
1: One stop service for customized machine
2: Offer installation & operating training
3: One year warranty of the whole machine
4: Life-long technical support for free
1: Why Us?
We are reckoned as one of the leading manufacturers and exporters of roll forming machines and various other machines. Owing to our quality proven range, we have been able to become a preferred choice of our customers over other competitors due to the following reasons:
· Efficient quality control
· Procurement of basic material from authentic vendors
· Pool of experienced and proficient team
· Industrial expertise
2: Application
The roll forming machines can produce various of steel roof and wall panel; it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
3: Our advantages
Professional engineers team and sale team
Quickly reply you inquiry and questions
Competitive price and high quality machine configuration
Near Tianjin Port, delivery fast.
Exported for 17 years.
Design as customers need.
