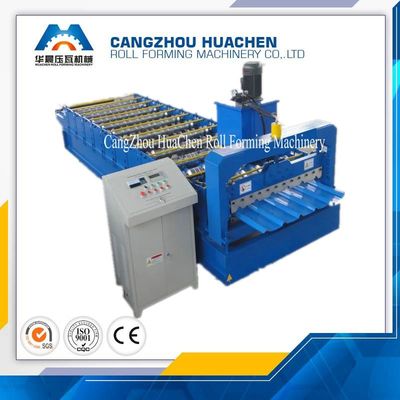

Corrugated Metal Roofing Sheet Roll Forming Machine 4.5T Fully Automatic

1set
MOQ
USD8000-15000
harga
Corrugated Metal Roofing Sheet Roll Forming Machine 4.5T Fully Automatic
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Material: PPGi GI
capacity: 20m/min
machine weight: 4.5T
rollers: 45# steel
Type: 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine
cutting blade: Cr12
Menyoroti:

roof tile roll forming machine

,

cold roll forming machine
Informasi dasar
Place of Origin: China
Nama merek: HC
Sertifikasi: ISO CE
Model Number: HC25
Syarat-syarat pembayaran & pengiriman
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Deskripsi Produk



Corrugated Metal Roofing Sheet Roll Forming Machine 4.5T Fully Automatic 0



Double layer Full Automatic Roof Sheet Roll Forming Machine

1.Suitable to process: Color steel plate

2.Width of the plate: 1000mm

3.Rollers: 9/11 rows

4.Dimensions: 7*1.5*1.5m

5.Power: 4+4kw

6.Rolling material: high grade 45# steel(plated chrome on surface)

7.Thickness of the plate:0.3-0.6mm

8.Voltage: 380V 50Hz 3phases

9.Material of the cutting plate: Cr12

10.Hydraulic: 40#

11.Processing precision: Within 1.00mm

12.Control system: PLC control

Corrugated Metal Roofing Sheet Roll Forming Machine 4.5T Fully Automatic 1Corrugated Metal Roofing Sheet Roll Forming Machine 4.5T Fully Automatic 2Corrugated Metal Roofing Sheet Roll Forming Machine 4.5T Fully Automatic 3



The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.



Machine working flow:

Manual decoiler→Feeding material into machine→Roll forming machine--Glazed Tile Pressing System→Measure length→Hydraulic cutting→Finished Products

Corrugated Metal Roofing Sheet Roll Forming Machine 4.5T Fully Automatic 4

Label:

roof tile roll forming machine

roof panel roll forming machine

cold roll forming machine
