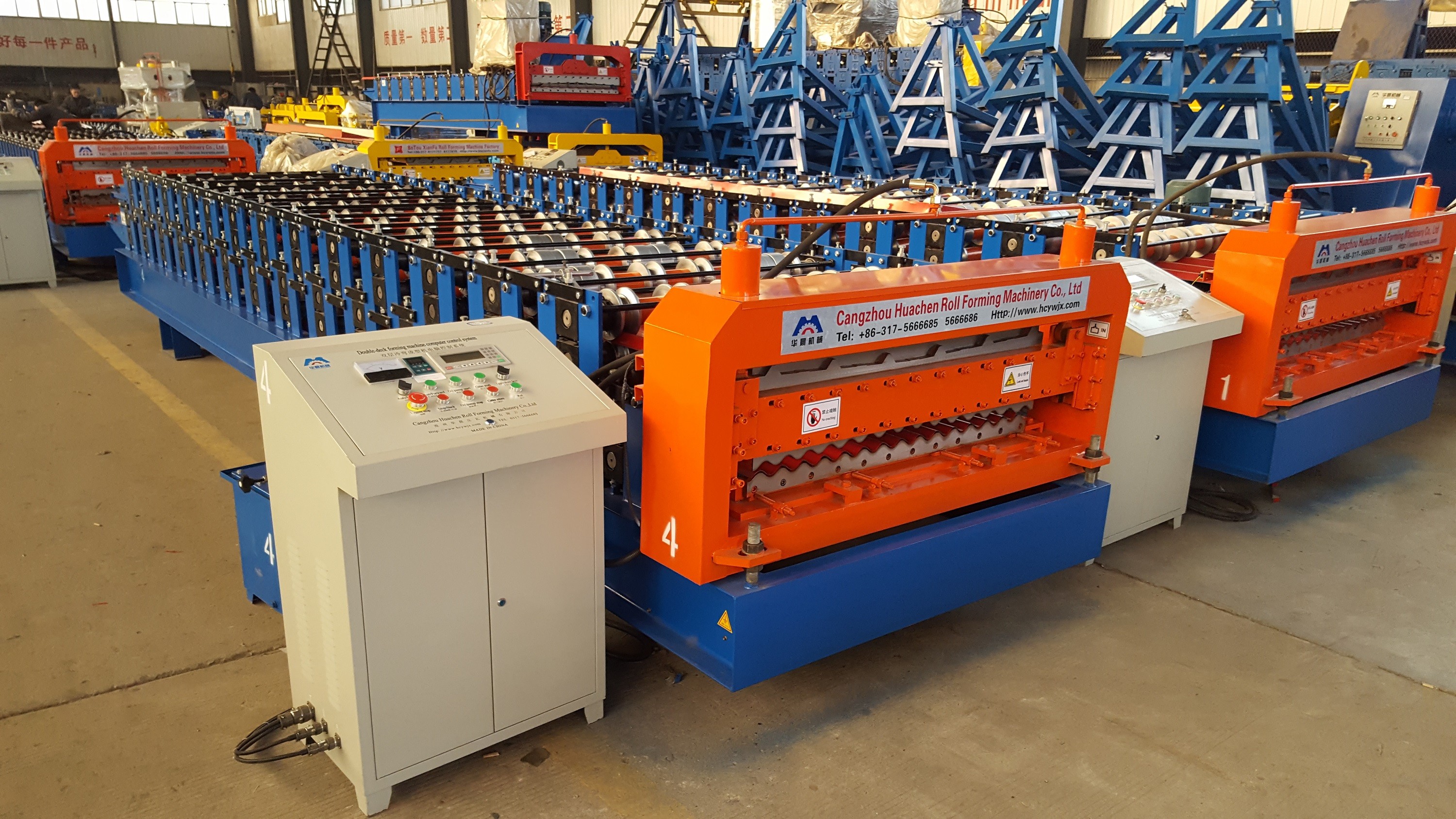

PLC Control Double Layer Sheet Metal Roll Forming Machines 18 Month Warranty

PLC Control Double Layer Sheet Metal Roll Forming Machines 18 Month Warranty
PLC Control Double Layer Sheet Metal Roll Forming Machines 18 Month Warranty
PLC Control Double Layer Sheet Metal Roll Forming Machines 18 Month Warranty PLC Control Double Layer Sheet Metal Roll Forming Machines 18 Month Warranty

Gambar besar :  PLC Control Double Layer Sheet Metal Roll Forming Machines 18 Month Warranty

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO/CE
Nomor model: HC26-25
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 12000-17000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

PLC Control Double Layer Sheet Metal Roll Forming Machines 18 Month Warranty

Deskripsi
Power(W): 4+5.5kw Warranty: 18 month
control system: PLC control system Width of the plate: 1200mm
working speed: 8-10m/min per month: 30 sets
Cahaya Tinggi:

metal roll forming machine

,

sheet metal roll forming machines



Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.



Main parameters



No. Main parameter of roll forming machine
1 Suitable to process Steel,Color steel plate,GI,Aluminium sheet...
2 Width of the plate 1200mm
3 Thickness of the plate 0.3-0.8mm
4 De-coiler Manual one, can load 5 tons raw material
5 Rollers for forming

Up layer: 12 rows

Down layer: 12 rows

6 Diameter of the roller 80mm
7 Rolling material Carbon Steel 45#
8 Main motor power 4kw
9 Productivity 8-12m/min
10 Cutting method Hydraulic mould cutting
11 Material of the cutting blade Cr12
12 Hydraulic cutting power 3kw
13 Processing precision Within 1.00mm
14 Control system Delta PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300 H steel
17 Weight About 6.5T
18 Dimensions 7.5*1.65*1.60m
19 Voltage 380V 50Hz 3phases(changeable as needs)
20 Certificate CE/ISO







Our Advantage
  Our machine Influence of the machine

Main forming

machine body

High strength H350 or H400 steel.

machine through milling machine after

welding

Sturdy and durable,

ensure the plate standard

Material of the

roller

High grade No.45 forged steel

Ensure the forming effect of

the panel and the use age will

be longer,the surface of the panel

Material of the

cutting

GCr12 steel with quenched treatment

Cutting is out of shape not easily

and use age will be longer,the panel

size precision

Material of the

active shaft

High grade solid No.45 carbon steel,

Shaft diameter is 72mm.

Improve the integrated mechanic

feature of the shaft and keep product

standard

Control system

PLC control system,some elements are

imported from Japan and Germany

Machine become more accurate and

more stable
