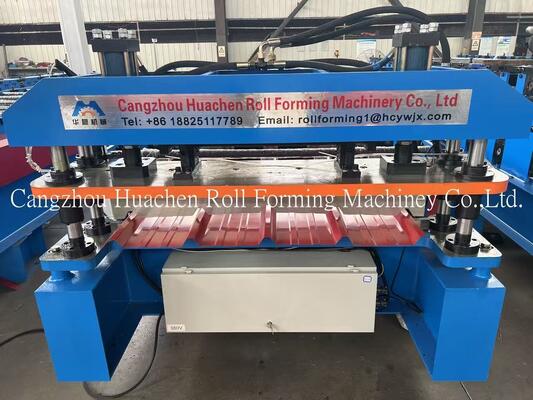

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment
Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment
Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Gambar besar :  Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Detail produk:
Tempat asal: Cina
Nama merek: HC
Sertifikasi: CE
Nomor model: HC28-250-1000
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1set
Kemasan rincian: Mesin roll forming utama dan decoiler adalah kemasan telanjang, sistem kontrol PLC dan pompa motor d
Waktu pengiriman: 25-30 hari
Syarat-syarat pembayaran: L/C,T/T
Supply Ability: 20 sets/month
Kontak

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Deskripsi
Jenis Bahan: PPGI/GI Ketebalan Bahan: 0,3-0,6 mm
Lebar bahan: 1200mm Stasiun roller: 11 stasiun
Bahan Rol & Poros: Pendinginan dan Pelapisan Baja 45# Diameter poros: Φ70mm
Bahan pemotong: CR12 Tipe Penggerak: penggerak rantai
Kecepatan: 15m/mnt kekuatan total: 5.5+5.5KW
Voltase: 380V 50Hz 3Phases (dapat disesuaikan)
Menyoroti:

cold roll forming machine

,

roof panel roll forming machine



Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment



General Introduction



The aluminum metcoppo steptiles roof sheets made by this aluminium corrugating machine is a new tile model compared with the normal step tile roof sheets. The whole aluminum metcopo stepped tile roofing sheets production line consists of 5 tons automatic electric decoiler, sheet guilder, corrugation machine, hydraulic cutter, supporting tables and Mitsubishi PLC controller. With this rolling machine, the operator can produce metcopo steptiles with any length.



Application

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment 0



Technical Parameters of Alluminium Metcopo Step Tile Corrugating Machine



(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.4-0.6mm
(3) effective width: 930mm
(4) feeding width: 1200mm
(5) main motor power: 5.5 kw
(6) pump power: 5.5 kw
(7) shaft diameter: 72 mm
(8) forming steps: 18 steps
(9) roller material: 45# forged steel with hard chrome plating

(10) cutting blades material: Cr12 mould steel
(11) main frame: H steel beams
(12) wall plate thickness: 16mm
(13) control system: Mitsubishi PLC computer control with inverter
(14) power supply: 380v/3 phase/50hz or designed according to customers' requirement



Main Components of Metcopo Step Tiles Corrugating Machine:

  • Uncoiler
  • Coil Sheet Guiding and Adjusting Equipment
  • Film Covered Device
  • Main Corrugation System
  • Post-Cutting Device
  • Hydraulic Station for Cutting and Step Pressing
  • PLC Control System
  • Support Tables

Working Flow of Metcopo Steptile Corrugation Machine


Decoiling Sheet---Guiding Sheet---Covering Film---Roll Forming---Measuring The Length---Cutting Sheet---Runout Tables

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment 1Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment 2

Label:

roof tile roll forming machine,

roof panel roll forming machine,

cold roll forming machine
