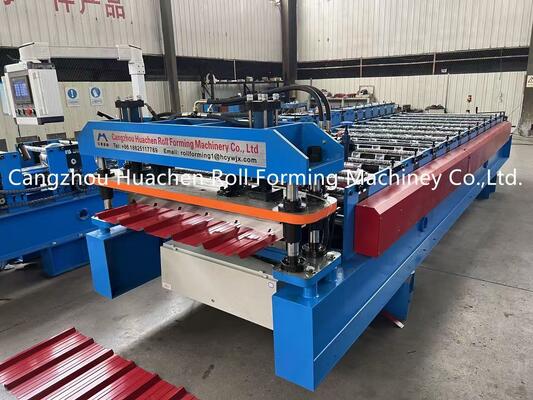

Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control
Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control
Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Gambar besar :  Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Detail produk:
Tempat asal: Cina
Nama merek: HC
Sertifikasi: CE
Nomor model: HC24-206-1000-1250
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1set
Kemasan rincian: Mesin roll forming utama dan decoiler adalah kemasan telanjang, sistem kontrol PLC dan pompa motor d
Waktu pengiriman: 25-30 hari
Syarat-syarat pembayaran: L/C,T/T
Supply Ability: 20 sets/month
Kontak

Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Deskripsi
Jenis Bahan: PPGI/GI Ketebalan Bahan: 0,3-0,6 mm
Lebar bahan: 1000mm,1250mm Stasiun roller: 12 stasiun
Bahan Rol & Poros: Pendinginan dan Pelapisan Baja 45# Diameter poros: Φ70mm
Bahan pemotong: CR12 Tipe Penggerak: penggerak rantai
Kecepatan: 15-20m/mnt kekuatan total: 5.5+5.5KW
Voltase: 380V 50Hz 3Phases (dapat disesuaikan)
Menyoroti:

roof tile roll forming machine

,

cold roll forming machine

Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Description


Metal roof sheet roll forming machine, glazed tiles rolling forming machine, roofing making machine, wall panel roll forming machine, steel profile roll forming machine, sandwich panels roll forming machine, floor deck roll forming machine, C/Z/U shaped galvanised steel bar roll forming machine, C purlin forming machine, china machinery, production machine

Competitive Advantage:
1. Full Automatic
2. Welded iron type
3. Save money
4. excellent quality
5. Operate easily
Specification

NO. ITEM PARAMETER NOTE
1.
 		 Suitable
material		 Type Pre-painted sheet,
Galvanized sheet
Width(mm) 1200mm
Thickness(mm) 0.3-0.8mm
Yield stress(mm) G220-G300
2. Product
specifications		 Detail as the attached file
Length Any length
3. Power
requirement		 Type 380v/3ph/50hz Motor brand shanghai Lichao
Main Motor power 4kw
Cutter power 4kw
4. Forming speed(m/min) 8-10m/min Not include the time of cutting
5. Manual Decoiler
(Optional)		 Type Manual
Max capacity 5t
Suitable coil OD(MM) 1200
Suitable coil
ID(MM)		 508
6. Forming stand 14 Depend on actual design
7. Thickness of structure 16mm
8. Forming shaft diameter(mm) 70solid
9. Type of cutting

Roll formed and
length-set cutting


10. Control system Panasonic PLC and inverter
11. Install dimension(depend on the final design) 5.2m×1.1m×1.3m Without panel length
12. Total weight (Approx) 3T Depend on final design




Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving
Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control 0
MachineComponents

No Name Quantity Remarks
1 Decoiler 1set Up to customer
2 Main machine Pre-cutting device 1set Up to customer
Feeding device 1set
Roll forming system 1set
Post cutting device 1set
Hydraulic system 1set
3 Electric control system 1set
4 Supporter/Automatic Stacker

1set



Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control 1Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control 2Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control 3

Label:

roof tile roll forming machine,

roof panel roll forming machine,

cold roll forming machine
