Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Ulasan pelanggan
Mesin mudah digunakan. Bosnya sangat baik.

—— Mr.Angolon Dari Eropa

Ini adalah produsen yang bagus, komunikator bahasa Inggris yang baik, dan saya suka mesin Anda. Kualitasnya bagus, dan cantik!

—— Mr.Mark Dari Afrika

Pemasok yang bagus! Saya suka pengiriman cepat dan siklus produksi cepat, akan tetap berhubungan dengan kalian.

—— Mr.Jack Dari Amerika

I 'm Online Chat Now

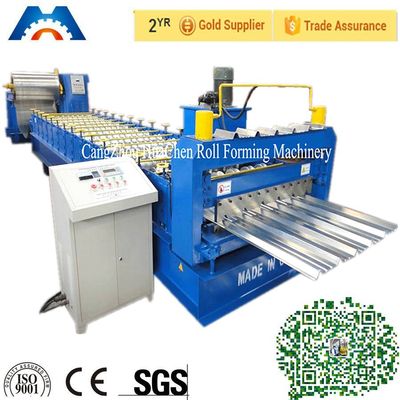

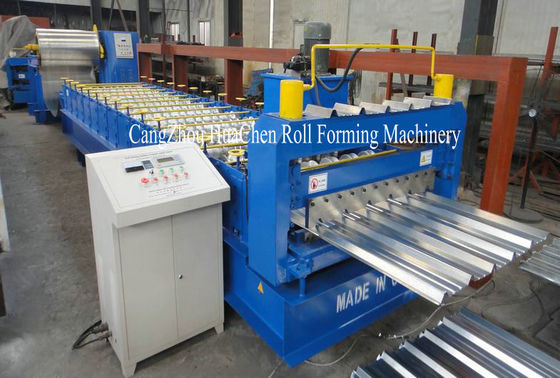

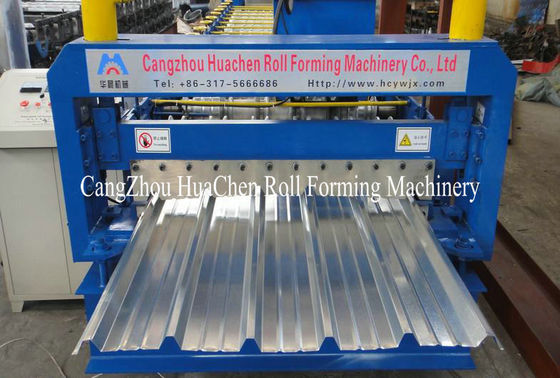

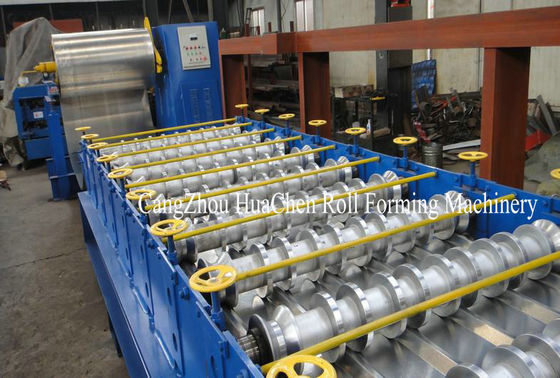

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate
Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate
Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Gambar besar :  Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC30-200-1000
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 8000-29000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Deskripsi
raw material: aluminum sheet type: automatic
use: roof panel profile: customized
cutting methold: hydraulic cut roller stations: 14
thickness: 0.3-0.7mm
Cahaya Tinggi:

cold roll forming machine

,

roof panel roll forming machine

Roof Sheet Roll Forming Machine





Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1200mm

3. Rollers: 14 rows

4. Dimensions: 7.1*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1200mm

3

Rollers

14 rows

4

Dimensions

7100*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate 0Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate 1





Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight
