2 In 1 Corrugated Roll Forming Machine For Two Different Profiles

Ulasan pelanggan
Mesin mudah digunakan. Bosnya sangat baik.

—— Mr.Angolon Dari Eropa

Ini adalah produsen yang bagus, komunikator bahasa Inggris yang baik, dan saya suka mesin Anda. Kualitasnya bagus, dan cantik!

—— Mr.Mark Dari Afrika

Pemasok yang bagus! Saya suka pengiriman cepat dan siklus produksi cepat, akan tetap berhubungan dengan kalian.

—— Mr.Jack Dari Amerika

I 'm Online Chat Now

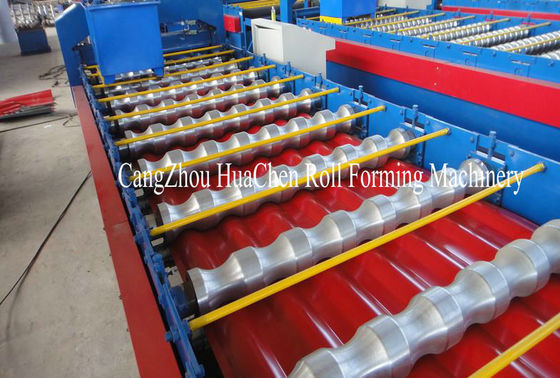

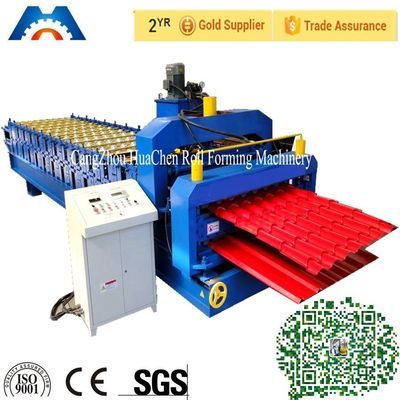

2 In 1 Corrugated Roll Forming Machine For Two Different Profiles

2 In 1 Corrugated Roll Forming Machine For Two Different Profiles
2 In 1 Corrugated Roll Forming Machine For Two Different Profiles 2 In 1 Corrugated Roll Forming Machine For Two Different Profiles 2 In 1 Corrugated Roll Forming Machine For Two Different Profiles 2 In 1 Corrugated Roll Forming Machine For Two Different Profiles 2 In 1 Corrugated Roll Forming Machine For Two Different Profiles

Gambar besar :  2 In 1 Corrugated Roll Forming Machine For Two Different Profiles

Detail produk:
Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO/CE
Model Number: HC32-24
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1set
Harga: 15000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

2 In 1 Corrugated Roll Forming Machine For Two Different Profiles

Deskripsi
roller sations: naik 12 dan turun 17 Tipe: Otomatis
Transmisi: Transfer berantai Metode pemotongan: PLC memotong hidrolik
Kekuasaan: 4 + 4 Kw Pekerja: 100
Cahaya Tinggi:

metal roll forming machine

,

sheet metal roll forming machines

Detail Cepat:

1. Cocok untuk diproses: Warna pelat baja

2. Lebar pelat: 1250mm

3. Rol: baris 15/11

4. Dimensi: 9,5 * 1,55 * 1,91 m

5. Daya: 4 + 4kw

6. Bahan bergulir: kelas tinggi 45 # baja (berlapis krom di permukaan)

7. Ketebalan pelat: 0.3-0.6mm

8. Tegangan: 380V 50Hz 3 fase

9. Bahan pelat potong: Cr12

10. Hidrolik: 40 #

11. Pemrosesan presisi: Dalam 1.00mm

12. Sistem kontrol: kontrol PLC



Deskripsi:

Lapisan ganda mengkilap ubin roll membentuk mesin Parameter utama

Tidak.

Parameter utama Mesin Roll Forming 2 In 1 Ganda Atap Untuk Dua Profil Atap Yang Berbeda

1

Cocok untuk diproses

Plat baja warna

2

Lebar pelat

1250mm

3

Rol

tingkat atas: 11 baris

Tingkat bawah: 15 baris

4

Ukuran

9500 * 1550 * 1910mm

5

Kekuasaan

4 + 4kw

6

Bahan bergulir

baja 45 # bermutu tinggi (berlapis krom di permukaan)

6

Ketebalan plat

0,3-0,6mm

7

Produktifitas

tingkat atas: 4m / mnt

Level bawah: 20m / mnt

8

Diameter roller

Φ70mm

9

Tegangan

380V 50Hz 3 fase

10

Bahan pelat potong

Cr12

11

Hidrolik

40 #

12

Presisi pengolahan

Dalam 1.00mm

13

Sistem pengaturan

Kontrol PLC

Komponen peralatan: Buatan manusia uncoiler-roll membentuk mesin-sistem kontrol komputer-sistem kontrol hidrolik- pers bentuk-cutting

2 In 1 Corrugated Roll Forming Machine For Two Different Profiles 02 In 1 Corrugated Roll Forming Machine For Two Different Profiles 12 In 1 Corrugated Roll Forming Machine For Two Different Profiles 22 In 1 Corrugated Roll Forming Machine For Two Different Profiles 3



Aplikasi

Mesin jenis ini membuat dua jenis ubin menjadi satu dengan sempurna, ia memiliki struktur yang masuk akal, penampilan yang indah, dengan keuntungan menghemat ruang, mudah dioperasikan dan terutama disambut oleh pelanggan dengan area terbatas atau situs



Keunggulan kompetitif

1. Penampilan cantik

2. Berbagai model khusus

3. tim perdagangan luar negeri dewasa

4. tim desain profesional

5. Perawatan seumur hidup
