Rumah /Produk/Jalan Raya Pembatas Pembentukan Mesin/Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm

Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm

1set
MOQ
29000-49000USD
harga
Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Menyoroti:

sheet metal Forming Machine

,

Highway Guardrail Roll Forming Machine
Informasi dasar
Tempat asal: Buatan China
Nama merek: HC
Sertifikasi: CE
Model Number: HC330
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Mesin utama telanjang, panel kontrol dikemas dengan kotak karton.
Waktu pengiriman: 60 hari setelah menerima setoran yang disepakati.
Syarat-syarat pembayaran: Deposit 30% oleh TT di muka, saldo harus dibayar sebelum pengiriman.
Menyediakan kemampuan: 20 Set / Bulan
Deskripsi Produk

Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm







Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 550mm

3. Rollers: 24 rows

4. Dimensions: 11.6*1.35*1.51m

5. Power: 22+7.5kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:2.5-3mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



2,Description:



Gear Box Drive Highway Guardrail Forming Machine / equipment Main parameter

No.

   Main parameter of Gear Box Drive Highway Guardrail Forming Machine / equipment

1

Suitable to process

Color steel plate

2

Width of the plate

550mm

3

Rollers

24 rows

4

Dimensions

110600*1350*1510mm

5

Power

33+7.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

2.5-3mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

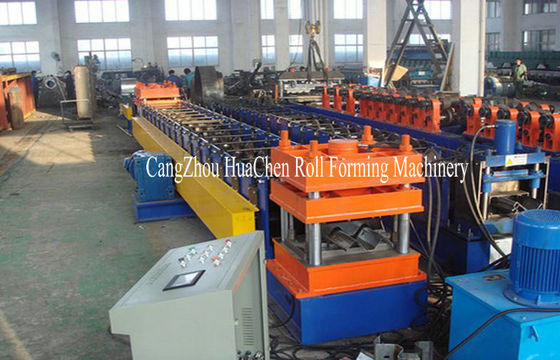

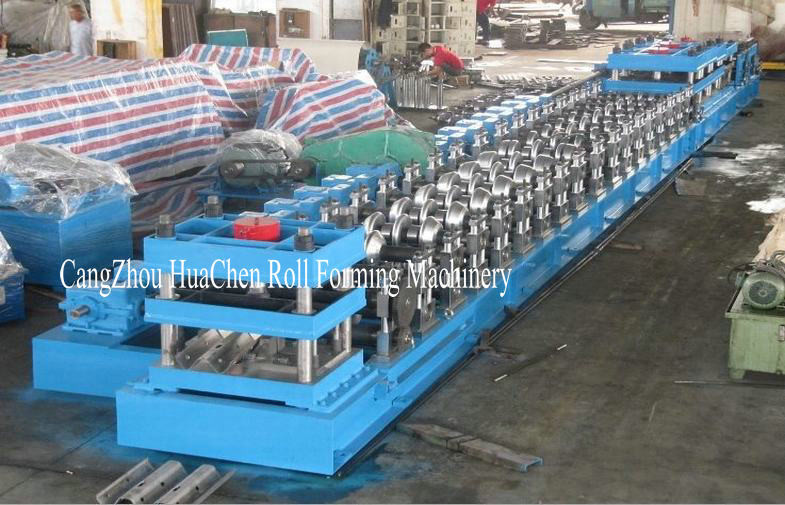

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting



3.Competitive Advantage



1.ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate



Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm 0Gear Box Drive Highway Guardrail Forming Machine Thickness 4mm 1
