PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency

PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency
PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency
PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency

Gambar besar :  PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO/CE
Nomor model: HC8/33
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 15000-39000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency

Deskripsi
color: blue type: automatic
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
Cahaya Tinggi:

metal roll forming machine

,

sheet metal roll forming machines



Automatic Steel Double Layer Roll Forming Machine Application

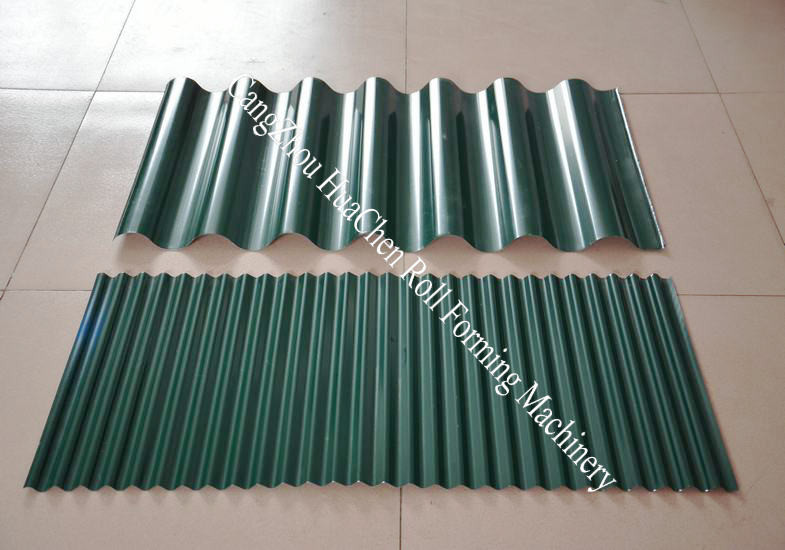

Our Automatic Steel Double Layer Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Automatic Steel Double Layer Roll Forming Machine

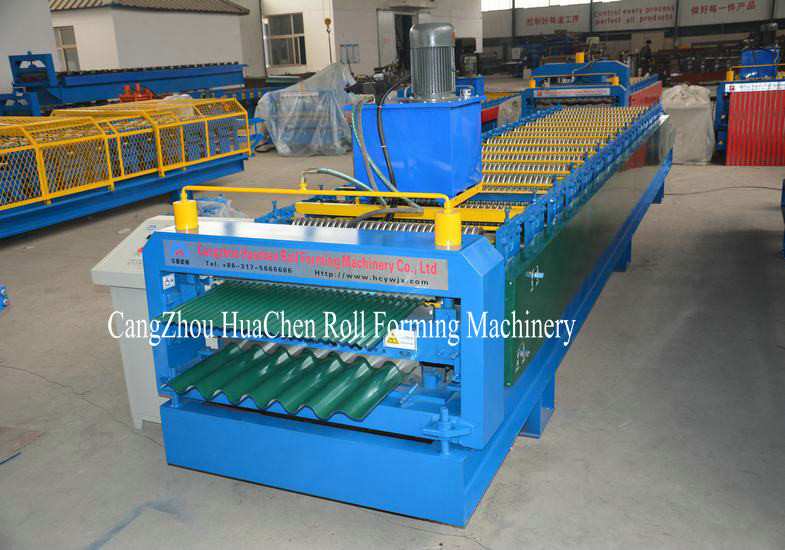

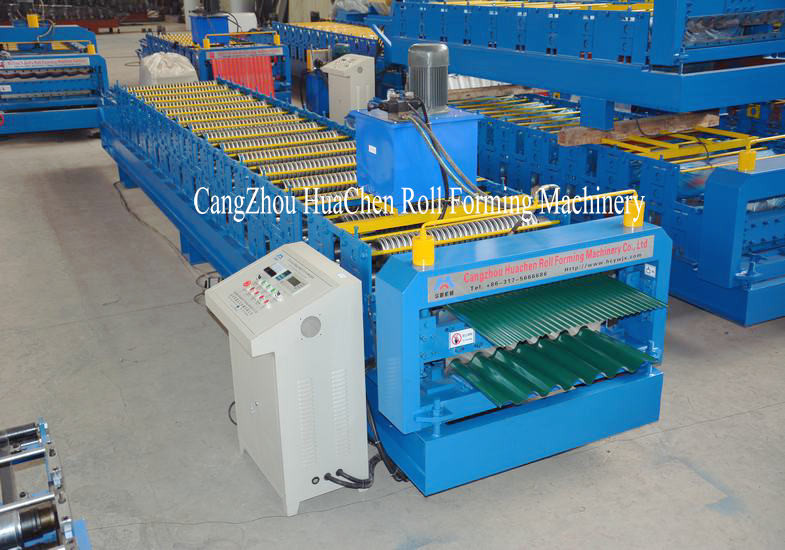

Main Roll Forming Machine
Roller station 14/18 rows
Material of roller High grade 45# forged steel plated with hard chrome plating
Material of cutter Cr12 mould steel with quenched treatment

Material
Type PPGI GI AL
Material width customized
Material thickness 0.3-0.6mm

Others
Speed 20m/min
PLC system EURA or customized
Weight 6.5T


PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 0
Automatic Steel Double Layer Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 1PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 2PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 3

Automatic Steel Double Layer Roll Forming Machine Parts

Detailed Images

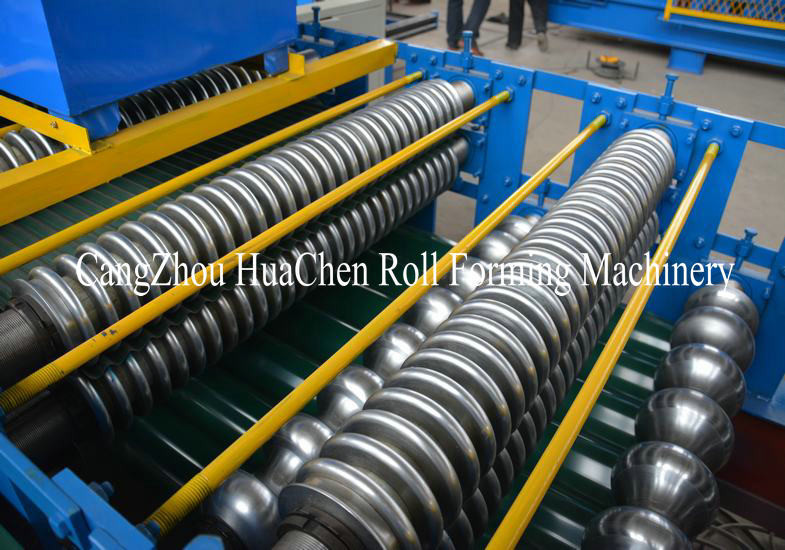

PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 4 Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

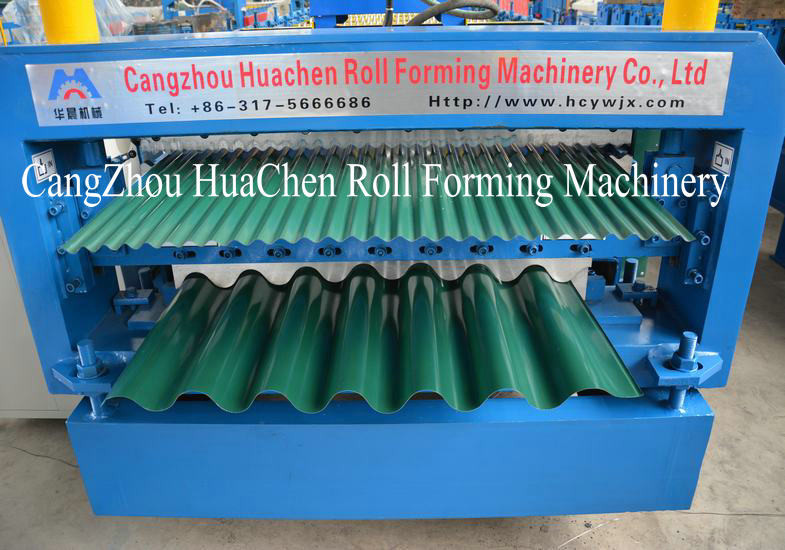

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 5
PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 6

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 7 PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 8

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 9 Size: 9400 (L) * 1550 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 10 PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 11 PLC Control Automatic Steel Double Layer Roll Forming Machine High Efficiency 12
