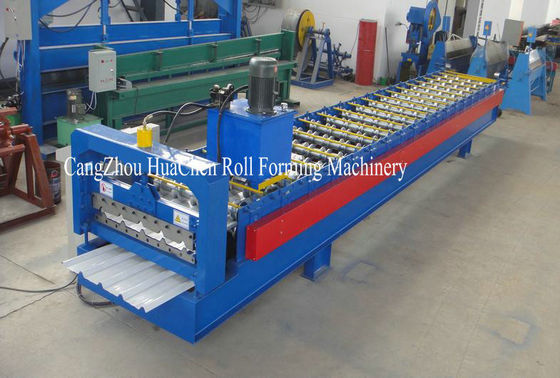

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler
Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler
Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Gambar besar :  Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC25-190-760
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 8000-29000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Deskripsi
type: Roofing Sheet Roll Forming Machine usage: roof sheet
material: PPGI GI thickness: 0.3-0.8mm
capacity: 20m/min
Cahaya Tinggi:

roof tile roll forming machine

,

roof panel roll forming machine

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler 0



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 914mm

3. Rollers: 19 rows

4. Dimensions: 5.8*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

914mm

3

Rollers

19 rows

4

Dimensions

5800*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting



Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler 1

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler 2

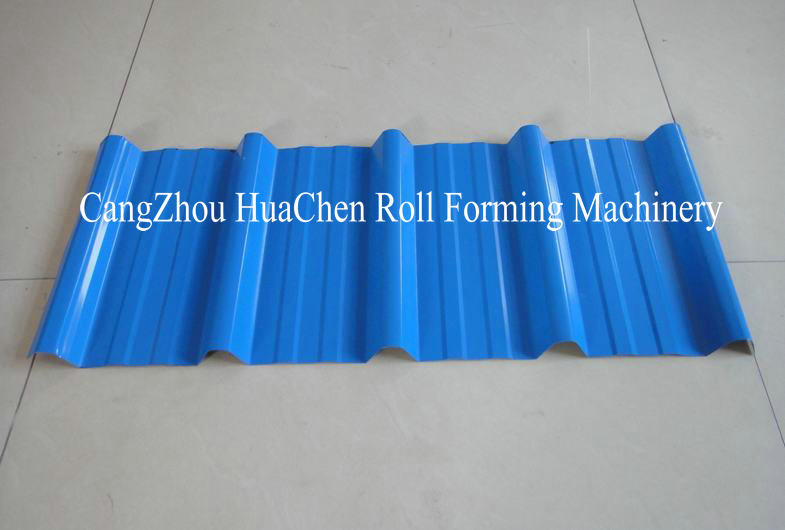

Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.



Competitive Advantage



1. good service

2. easy installation

3. short delivery time

4. professional design team

5. easy to use

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler 3

Worrying about machine packing and delivery ?
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper coverage
3.All machines need one 40'container to hold.

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler 4
