Detail produk:
|
| color: | blue | control system: | PLC control |
|---|---|---|---|
| type: | full automatic | working speed: | 8-10m/min |
| cutting method: | hydraulic cuting | ||
| Cahaya Tinggi: | sheet metal roll forming machines,corrugated roll forming machine |
||

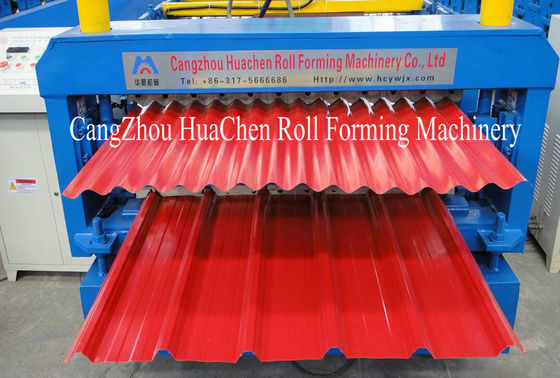

CNC Full Automatic Double Layer Roll Forming Machine 380V 50Hz 3 Phase
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 10/14 rows
4. Dimensions: 8.2*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Main parameter
|
No. |
Main parameter of Double layer roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250mm |
|
3 |

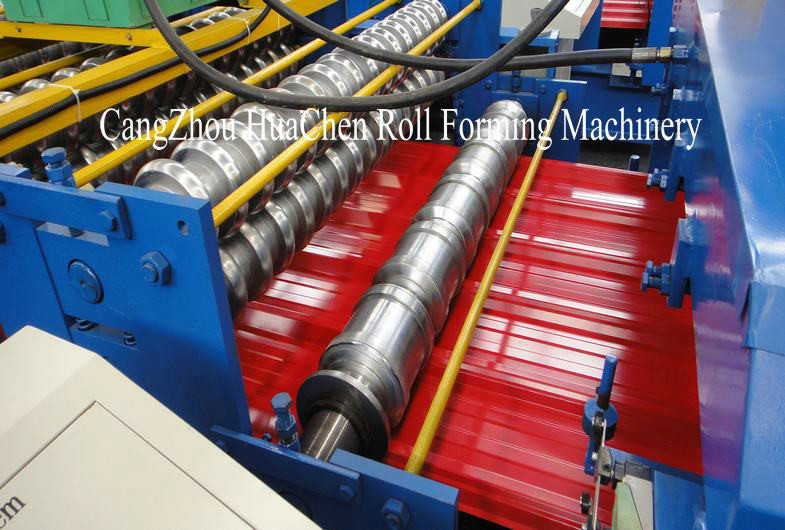

Rollers |
upper level :10 rows Down level :14 rows |
|
4 |
Dimensions |
8200*1550*1910mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

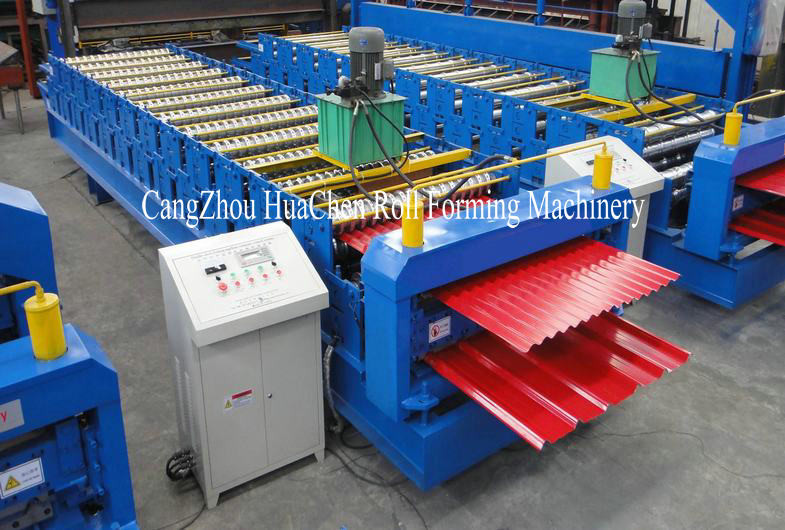

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Application:

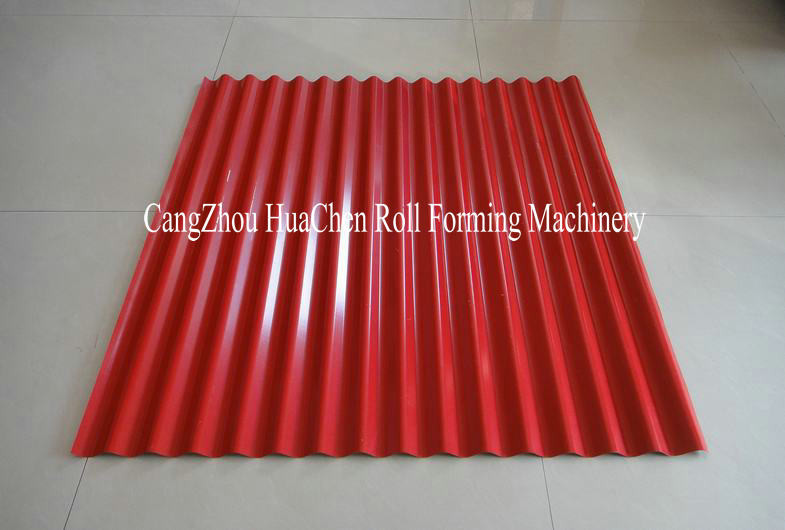

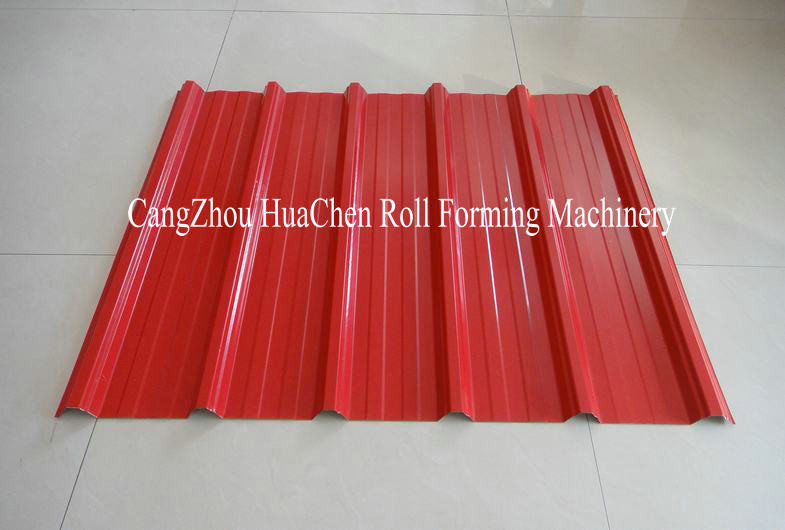

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use
