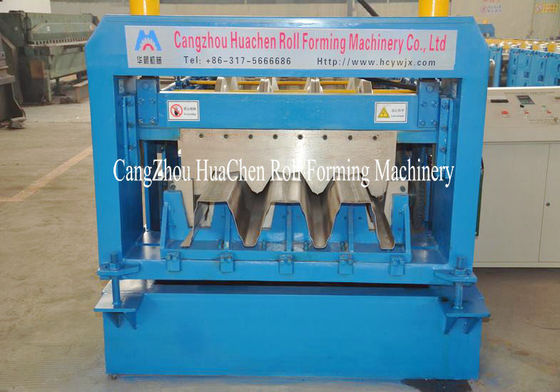

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations
PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations
PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

Gambar besar :  PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

Detail produk:
Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Model Number: HC151
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1set
Harga: 28000-6900USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Kontak

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

Deskripsi
Menyoroti:

wall panel roll forming machine

,

metal deck roll forming machine

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations

Main Specifications of Steel Deck Roll Forming Machine

  • Material Spec: Galvanized steel sheet
  • Thickness of Coil Sheet: 0.8 --1.2 mm
  • Main Motor Power of Floor decking roll forming machine: 18.5kw
  • Forming Speed: 10--12m/min
  • Hydraulic Station Power: 4kw
  • Quantity of Stands: About 24 groups
  • Hydraulic Pressure: 10~12Mpa
  • Controlling System: PLC
  • Index Error of Length: 10m±1.5mm
  • Total Weight: About 1800kg
  • Voltage: 380V 3 phase 50Hz or at buyers requirement





Main Components



  • Decoiler ----------------------------------------------- 1 Unit
  • Feeding ----------------------------------------------- 1 Unit
  • Main roll forming machine ----------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------- 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit



PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations 0







Reference Drawings







PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations 1

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations 2

PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations 3PLC Control System Steel Deck Roll Forming Machine With 24 Forming Stations 4
