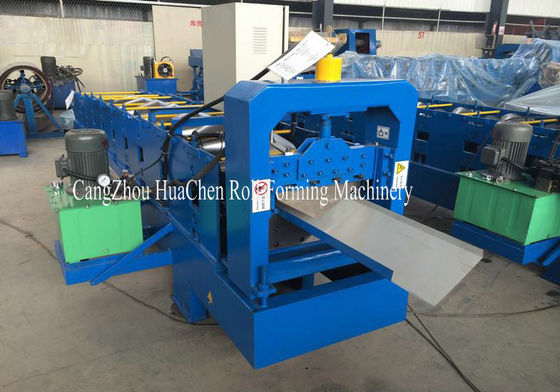

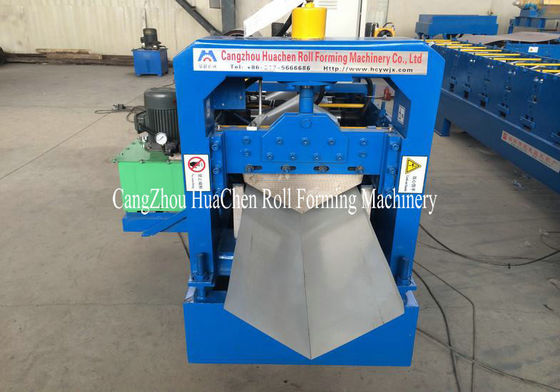

Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type

Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type
Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type

Gambar besar :  Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC280
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 8000-29000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type

Deskripsi
Cahaya Tinggi:

roll form equipment

,

cold roll forming equipment



Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type









Quick Detail:Vally Type Ridge Cap Roll Forming Machine Used on Warehouse and Plant



1. Suitable to process: Color steel plate

2. Width of the plate: 400mm

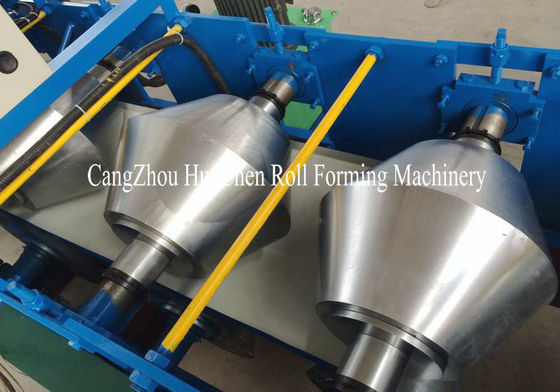

3. Rollers: 15 rows

4. Dimensions: 8.1*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description: Vally Type Ridge Cap Roll Forming Machine Used on Warehouse and Plant

Main parameter

Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type 0

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

15rows

4

Dimensions

8100*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting

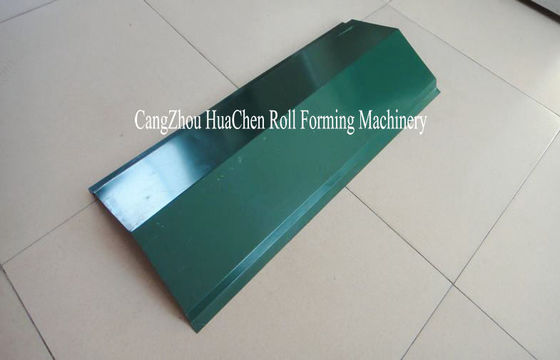

Application

Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type 1

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.



Competitive Advantage





1. operations safety

2. nice appearance, high quality

3. reasonable price

4. CE certification

5. ISO certification
