Detail produk:
|
| Material: | PPGI GI AL | width: | 1000mm |
|---|---|---|---|
| Thickness: | 0.3-0.6mm | Usage: | shutter door |
| function: | anti wind | warranty: | 1 year |
| Cahaya Tinggi: | roll forming machinery,door frame roll forming machine |
||

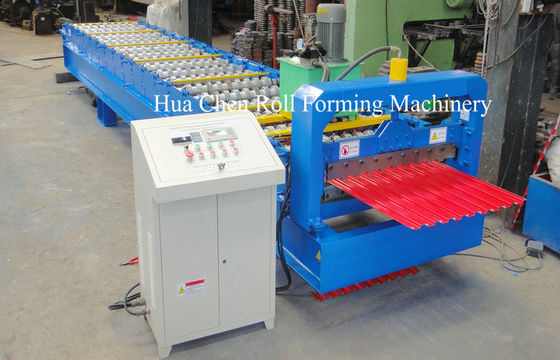

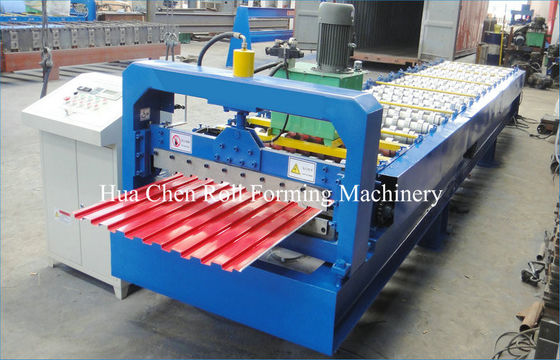

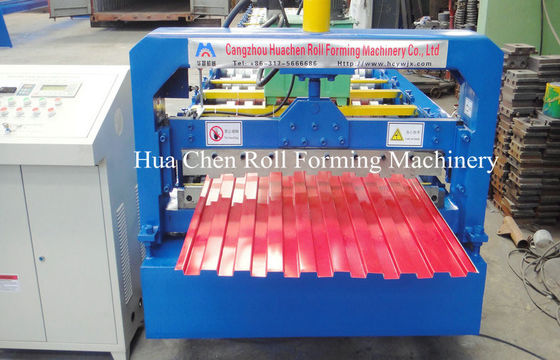

Low Prices Customized Shutter Door Roll Forming Machine with 6M seaming machine
Shutter door forming machine is to produce rolling doors of major equipment, the use of galvanized steel or different colors of color steel or aluminum as a raw material, production of color plate rolling gates brilliant color, do not fade, do not rust, fire cut off, easy deformation, strength 3 times higher than the aluminum door.
|
Main Motor Power
|
7.5 kw
|
|
Hydraulic Station Powder
|
3 kw
|
|
Hydraulic Oil Pump
|
CE-310
|
|
Sprocket
|
P-25.4mm
|
|
Control System
|
PLC
|
|
Yield Strength
|
32Mpa
|
|
Diameter of Axis
|
80mm
|
|
Material Roller
|
#45 steel hard chrome plating
|
|
Processing speed
|
8-12m/min
|
|
Frame
|
30H steel welding
|
|
Roller plate thickness
|
0.3-1mm
|
|
Use
|
The machine used to produce all kinds of house,
|
|
Equipment parts
|
Decolier, main roll forming machine, hydraulic cutter, hydraulic station, PLC electric control system, counter, product supporter
|
Description:
Rolling Shutter Door Roll Forming Machine Main parameter
|
No. |
Main parameter of Rolling Shutter Door Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
18 rows |
|
4 |
Dimensions |
8600*1450*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.6mm |
|
7 |
Productivity |
20m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
This type of sheet can be widely used as the door of garage, storage and supermarket.
Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
