Detail produk:
|
| Usage: | roof and wall | Thickness: | 0.3-0.6mm |
|---|---|---|---|
| width: | 1000mm | roller: | 45 Steel |
| capacity: | 10m/min | warranty: | 1 year |
| Cahaya Tinggi: | roof tile roll forming machine,cold roll forming machine |
||
Hydraulic Cutter Roof Panel Trapezoidal Roof Panel Roll Forming Machine PLC Panasonic

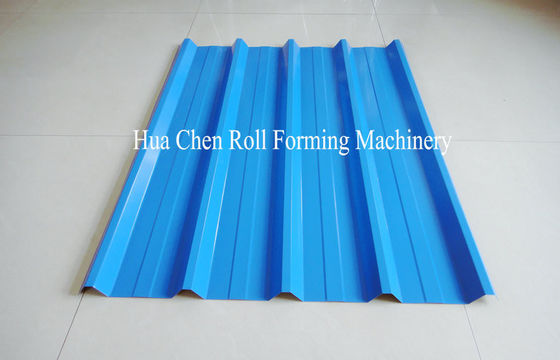

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

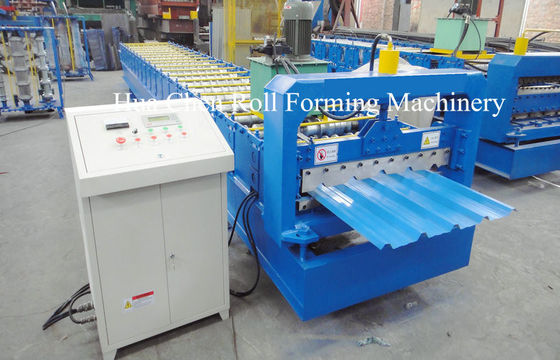

The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables.
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate:914mm
3. Rollers: 19 rows
4. Dimensions: 9.1*1.55*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Roofing sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roofing sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
914 mm |
|
3 |
Rollers |
19 ows |
|
4 |
Dimensions |
9100*1450*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.
Guarantee:
12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-sale service:
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
