Detail produk:
|
| Usage: | roof and wall | type: | cold roll forming |
|---|---|---|---|
| Thickness: | 0.3-0.6mm | Speed: | 20m/min |
| warranty: | 1 year | technical support: | whole life |
| Cahaya Tinggi: | roof tile roll forming machine,cold roll forming machine |
||

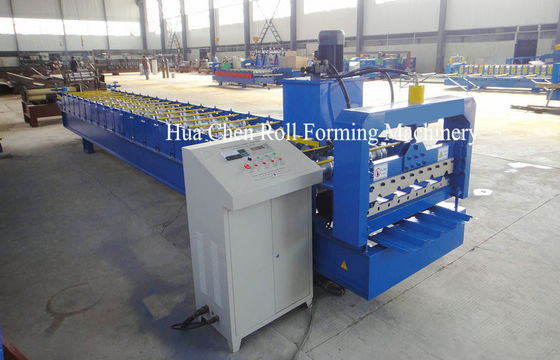

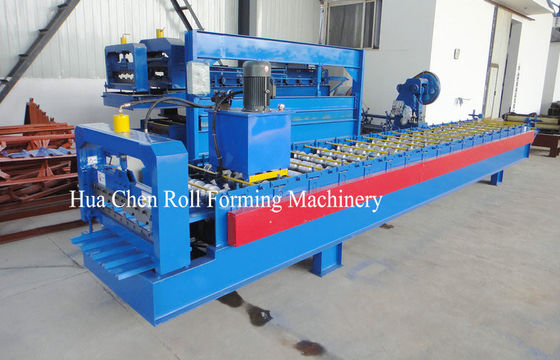

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
1. technical parameter
| Main Motor Power | 3kw |
| Hydraulic Station Power | 3kw |
| Hydraulic Oil Pump | CB-E310 |
| Sprocket | P-25.4 |
| Roller Station | 9 |
| Yield strength | 32MPa |
| Diameter of Principal Axis | 70MM |

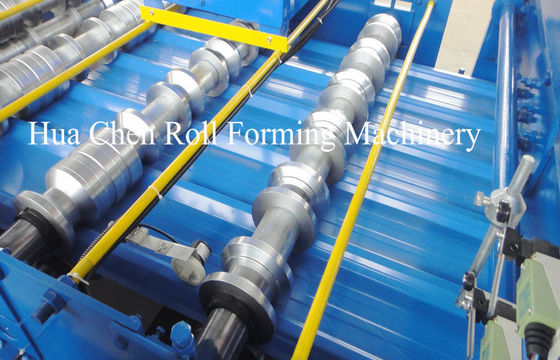

| Material of Roller | 45#steel hard chrome plating |
| Processing Speed | 8m/min |
| Installation Dimension (L*W*H) | 6.5m*1.5m*0.8m |
| Total Weight | 3.8T |
| Equipment Parts | roll forming system, hydraulic system, PLC frequency conversion control system, counter and cutting system. |
| Production | according to customers' demand |
Description:
Roof Sheet Roll Forming Machine Main parameter
No. | Main parameter of Roof Sheet Roll Forming Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 914mm |
3 | Rollers | 19rows |
4 | Dimensions | 9100*1450*1510mm |
5 | Power | 3+3kw |
6 | Rolling material | 45# steel ( plated chrome on surface ) |
7 | Thickness of the plate | 0.3-0.6mm |
8 | Productivity | 8-10m/min |
9 | Diameter of the roller | Φ70mm |
10 | Voltage | 380V 50Hz 3phases |

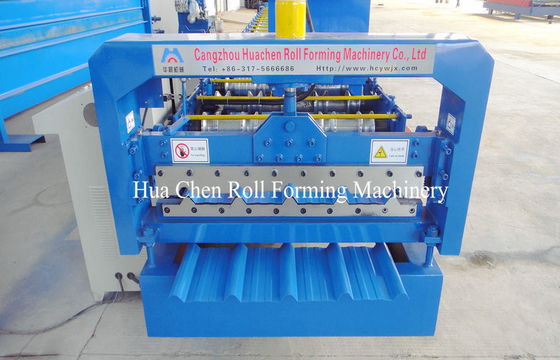

11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

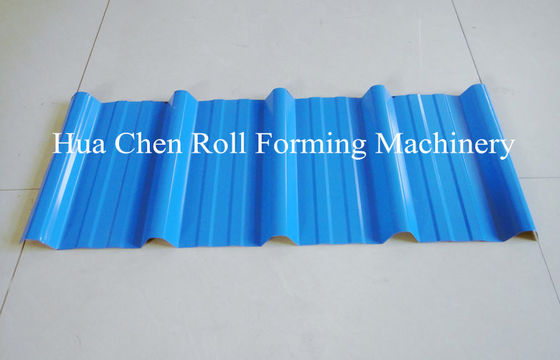

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Packaging :
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed with water proof paper
Shipping :
1. One 20" container
2. One 40"container
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $150/days
