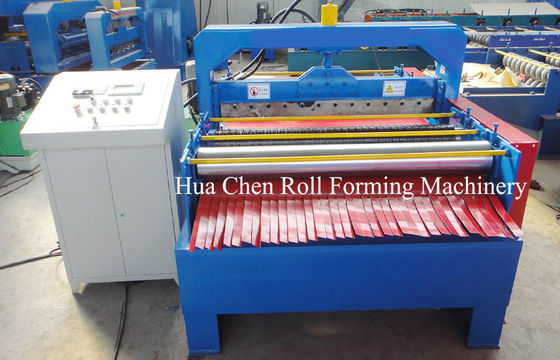

Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel

Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel
Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel

Gambar besar :  Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC1000
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 8000-2900USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel

Deskripsi
Cahaya Tinggi:

automatic pipe cutting machine

,

steel plate cutting machine

Full Automatic Metal Plate Cutting Machine 3 rows For Wall Panel





Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000-1250mm

3. Rollers: 3 rows

4. Dimensions: 3.5*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Hydraulic: 40#

10. Processing precision: Within 1.00mm

11. Control system: PLC control





Description:



Flatting-Cutting Machine Main parameter

No.

   Main parameter of Flatting-Cutting Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000-1250mm

3

Rollers

3 rows

4

Dimensions

3.5*1.55*1.51m

5

Power

4+4kw

6

Thickness of the plate

0.3-0.7mm

7

Productivity

25m/min

8

Voltage

380V 50Hz 3phases

9

Hydraulic

40#

10

Processing precision

Within 1.00mm

11

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting





Application



use for cut the sheet to strips, also use for other accessories.





Competitive Advantage





1. CE certification

2 .ISO certification

3. working life 20 years

4. high quality steel

5. High efficiency
