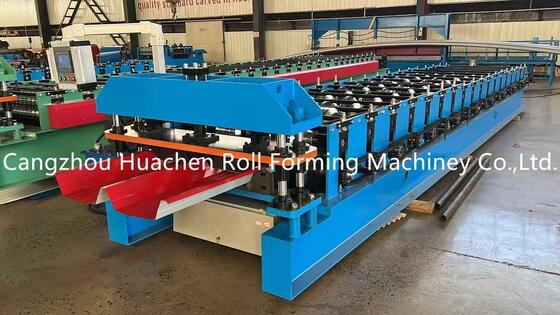

24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty

24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty
24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty
24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty 24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty

Gambar besar :  24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty

Detail produk:
Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Model Number: HC38
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1set
Harga: 9000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Kontak

24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty

Deskripsi
type: Roofing Sheet Roll Forming Machine rollers: 24
roller material: No.45 steel warranty: 12 month
Nama merek: HC payment term: T/T
Menyoroti:

cold roll forming machine

,

roof panel roll forming machine

24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty



Product Specifications



Roller steps 18 upper layer/18 bottom layer
Dimension 9200*1600*1550mm
Weight 5t
Feeding width 1200mm
Forming thickness 0.28-0.8mm
Large frame 400mm H-Beam
Diameter of roller Φ75mm
Middle plate 16-25mm
Chain Size 1 inch
Voltage 380V 50HZ 3 phases or customized
Motor power 4kw
Pump station power 3kw/(7.5kw hydraulic motor)
Transducer power 3.5kw
Cutting system Hydraulic cutting(avoiding noise and smooth cut)
Material of cutting Cr12
Control system PLC brand :Panasonic
Length error : ±2mm
Production capacity 2-3m/min
Warranty 1 year and we provide technical support for whole life, and overseas service
Maintain Easily :Timely adding oil
Payment terms 30% in advance, the balance before delivery
Package Standard package
Delivery 35 days after receiving the deposit

24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty 024 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty 124 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty 224 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty 3

Label:

roof tile roll forming machine,

roof panel roll forming machine,

cold roll forming machine
