High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting
High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting
High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

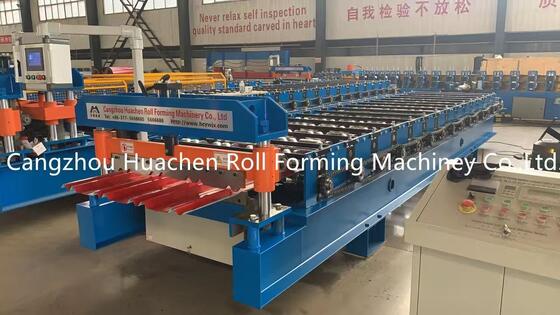

Gambar besar :  High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC36
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 8000-29000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

Deskripsi
type: High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting rollers: 17
roller material: No.45 steel warranty: 12 month
Dimension: 5.9*1.3*1.1 m Weight: 3.5T
Voltage: 380V, 50 Hz, 3 phase
Cahaya Tinggi:

roof tile roll forming machine

,

roof panel roll forming machine

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting



Characteristic of Roofing Sheet Roll Forming Machine



1. This Roofing Sheet Profile Roll Forming Machine can rollform galvanised iron roofing panel sheet. After roll formed by this roofing sheet roll forming machine, the surface of iron metal roof sheet panel is very smooth and beautiful without any scratch on the surface of profile sheets.
2. The Roof Sheeting Roll Forming Machine is with fully automatic control system with PLC.
3. Length, quantity of sheets is adjustable.
4. Easy operation: Key in the length and quantity on the control panel.
5. Rollforming process: Decoiler, Rollforming, Cut to length.
6. 1 Year warranty, lifelong time service.
7. We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.



Reference Specifications of Roofing Sheet Roll Forming Machine



  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Forming Station of Roofing Sheet Roll Forming Machine: 16 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 76mm
  • Working Speed: 0-15 m/min
  • Drive Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton



Compostion of Roofing Sheet Roll Forming Machine





Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Roofing Sheet Roll Forming Machine 1 Unit
Hydraulic Cutting System 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 2 Units



Reference pictures

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting 0High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting 1High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting 2

Our Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
