Detail produk:
|

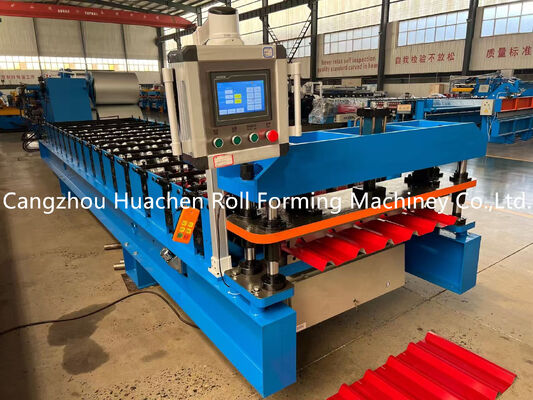

| type: | Hydraulic Corrugated Metal Panel Roofing Sheet Forming Machine 5m / min | rollers: | 14 |
|---|---|---|---|
| roller material: | No.45 steel | warranty: | 12 month |
| Use: | Roof | Power(W: | 5.5KW+4KW |
| Voltage: | 380V 50Hz 3phases | ||
| Cahaya Tinggi: | cold roll forming machine,roof panel roll forming machine |
||
Technical data of metal roof tile roll forming machine
| Suitable material | color steel sheet;0.3-0.7mm, |
| Working speed | about1.5-5m/min |
| stress | 235MPa,345MPa,550MPa. |
| Power | Main motor power: 5.5 Kw(Depend on final design) |
| Hydraulic station power: 4Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter,pressing die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, Roller grinder milling. |
| Shaft diameter | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 9500KGS |
| Machine’s size | about 18m×1.8m× 1.5m (Depend on final design) |
Layout drawing of machine
Our Roll Forming Machine’s advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
