Detail produk:
|
| Usage: | Roof and wall | Material: | PPGI, GI |
|---|---|---|---|
| Operation: | Need 1 person | Capacity: | 2-10m/min |
| Weight: | 6T | Size: | 7*1.55*1.91m |
| Life time: | 30 Years | Warranty: | Whole life |
| Cahaya Tinggi: | metal roll forming machine,sheet metal roll forming machines |
||
1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine
Detailed Product Description
Un-coiler---- ----straight device---- Roll forming ------Hydraulic cutting—PLC control system----Stacker
Main Specifications
| Coil Material | Thickness | 0.3-0.8mm |
| Coil width | Custom-made | |
| Yield Strength | 250~350Mpa | |
| Material | Color Steel, GI. Aluminium | |
| Decoiler / Uncoiler | Coil Width | Max. 560mm |
| I.D | 560mm | |
| O.D | Max. 1500mm | |
| Roll Forming Machine | Forming stations | 16 Stations ( Depend on Profiles ) |
| Roller material | GCr15 steel, HRC58-62 | |
| Diameter of shaft | 70mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission system | |
| Forming speed | 5-7m/min | |
| Main power | 5.5 KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting Tolerance | 10m+/-0.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand or Custom-made |
| Inverter | Delta Brand or Custom-made | |
| Touch screen | Delta Brand or Custom-made | |
| Operation type | Touch screen & Button | |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels |
Main Components
| Main Roll Forming Machine | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Hydraulic cutting | 1 Unit |
| Decoiler / Uncoiler | 1 Unit |
| Hydraulic Station | 1 Unit |
| Runout Table | 1 Unit |
Our Advantage

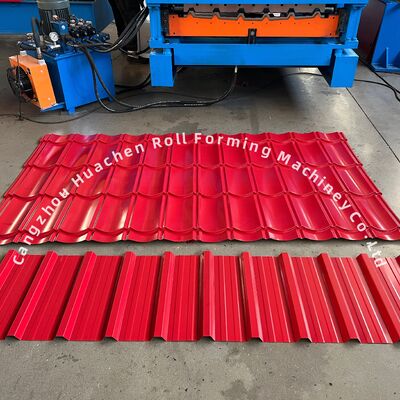

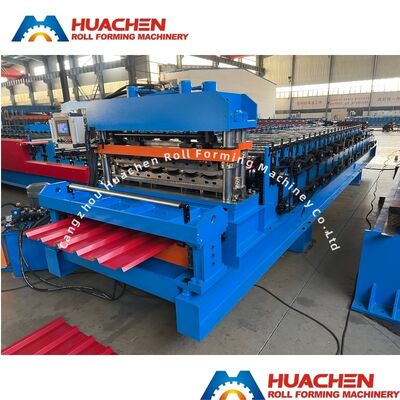

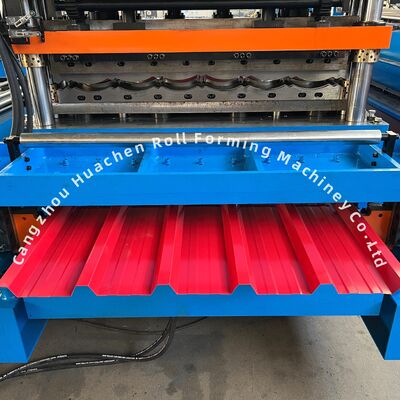

Machine Pictures
Introduction
Cangzhou Huachen Roll Forming Machine Co.,Ltd. is one of the rare national and specialized companies. He owns the international outstanding cold bending steel roller designing software: COPRA Software Germany.
Our company is an entity enterprise integrating researching, manufacturing and managing. We adopt advanced CNC numerical control matching software equipment to provide customers with cold bending steel products design and project cost analysis, roller design and count, molding arctic simulation and making various kinds of rigid rollers as well as every kinds of cold bending equipment. Our products are widely used in steel structure industry, decorating and fitting material industry, elevator industry and various projects using pipe industry. It became one of the number enterprises of Cold Bending Industry Association, Construction Metal Structure Association, Decorating and Fitting Material Association attached to the Chinese Steel ISO in 1999.
During many years’ researching work, we have accumulated advances technology and valuable experience. The products manufactured by us have the features of steady and convenient operation, high efficient finished products, lower consumption etc. So they are popular from home and abroad.
Our company always keeps this faith:Quality first, Credit foremost. We cordially welcome all the customers from home and abroad to visit our company and negotiate with each other.
