Detail produk:
|
| Material: | GI | Size: | 80-300 |
|---|---|---|---|
| Punch: | included | Length: | 8.6m |
| warranty: | 1 year | life time: | 10 years above |
| Cahaya Tinggi: | roll form machines,rolling forming machine |
||

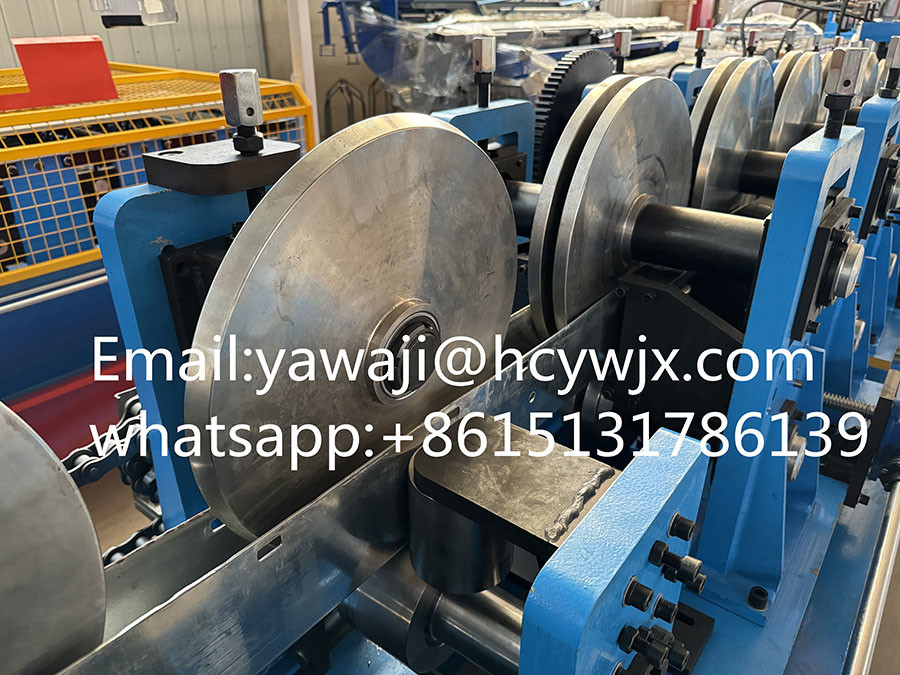

C Purlin Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 175/465mm
3. Rollers: 13 rows
4. Dimensions: 6.7*1.35*1.51m
5. Power: 11+7.5kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:1.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
| No. | Main parameter of steel stud & track roll forming machine | |
| 1 | Length of the main part | 3000*800*1400mm |
| 2 | Weight of main part | About 3 t |
| 3 | Voltage | 380V/50HZ3Phase (as customer’s request) |
| 4 | Roller fixer | Guide column |
| 5 | Frame |
Middle plate welded Memorial arch frame type |
| 6 | Frame thickness | 25mm |
| 7 | Drive mode | Gear or chain |
| 8 | Material of rollers | 45# steel with tempering |
| 9 | Material of shafts | 45# steel with tempering |
| 10 | Diameter of shafts | φ40mm |
| 11 | Number of rollers | 10 rollers |
| 14 | Main power | 3kw (Cycloidal planetary gear speed reducer) |
Description:
C shape purline Roll Forming Machine Main parameter
|
No. |
Main parameter of C Shape Purline Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
175/465mm |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
6.7*1.35*1.51m |
|
5 |
Power |
11+7.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5-3mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ80mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

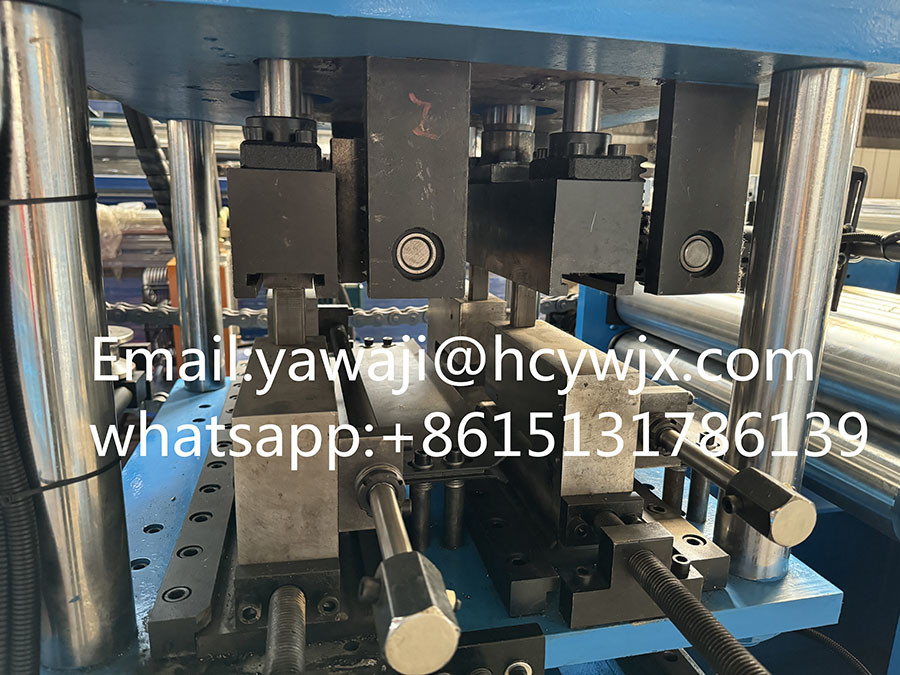

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting
Application:
C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
Competitive Advantage
1.ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
