Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

Ulasan pelanggan
Mesin mudah digunakan. Bosnya sangat baik.

—— Mr.Angolon Dari Eropa

Ini adalah produsen yang bagus, komunikator bahasa Inggris yang baik, dan saya suka mesin Anda. Kualitasnya bagus, dan cantik!

—— Mr.Mark Dari Afrika

Pemasok yang bagus! Saya suka pengiriman cepat dan siklus produksi cepat, akan tetap berhubungan dengan kalian.

—— Mr.Jack Dari Amerika

I 'm Online Chat Now

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine
Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine
Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

Gambar besar :  Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

Detail produk:
Tempat asal: China
Nama merek: HC
Sertifikasi: ISO CE
Nomor model: HC30
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: USD8000-15000
Kemasan rincian: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Waktu pengiriman: 30 work days
Syarat-syarat pembayaran: D/A, Western Union, L/C, T/T
Menyediakan kemampuan: 20 sets per month

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

Deskripsi
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: Roof Sheet Roll Forming Equipment cutting blade: Cr12
Cahaya Tinggi:

roof tile roll forming machine

,

roof panel roll forming machine



Double layer Full Automatic Roof Sheet Roll Forming Machine

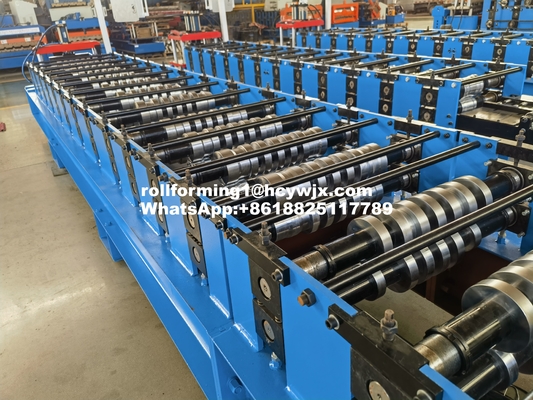

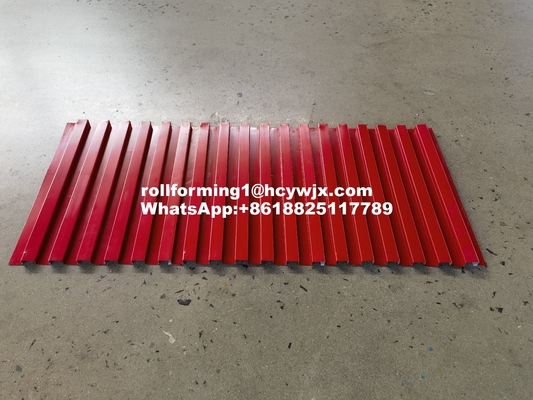

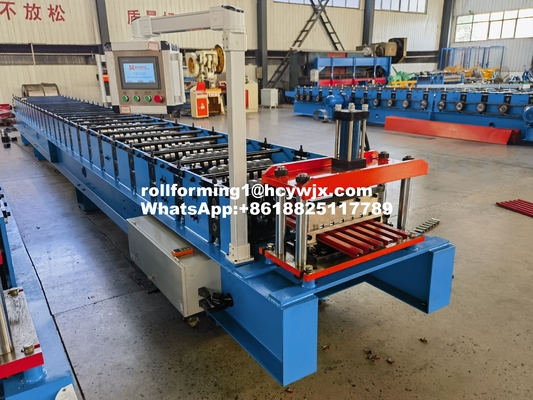

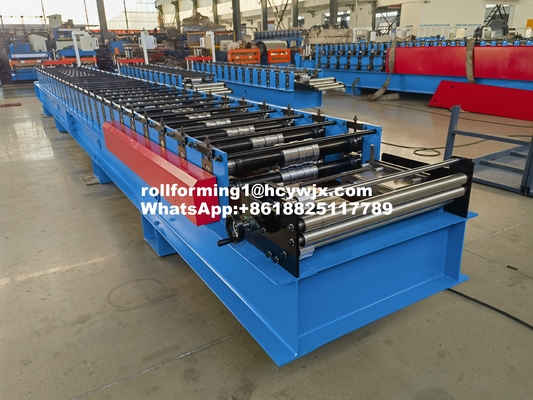

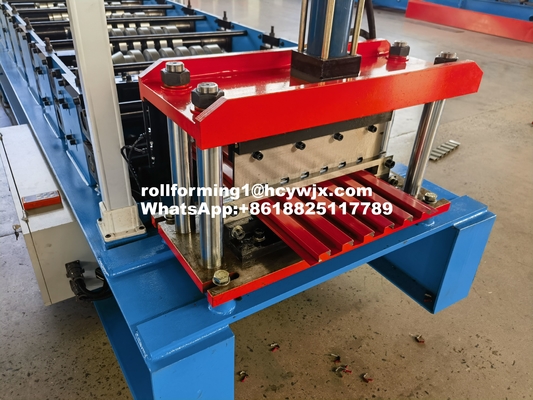

1. Roof Panel Roll Forming Machine Photos

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 1Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 2



2. Processing flow diagram of our roof roll forming machine



Manual decoiler→→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products



Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 3



3. Technical parameters about roof roll forming machine

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 1





ROOF PANEL ROLL FORMING MACHINE

1 Suitable to process Color steel
2 Width of the raw material 1200
3 Output width 1000
4 Rollers 16 rows
5 Power 4kw+4kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity

12-15m/min or

25-35m/min by hydraulic motor

8 Diameter of the roller 72mm
9 Weight About 4 T
10 Voltage 380V 50Hz 3phase
11 Received table 4 meters
12 Raw material of the cutter Cr12
13 Raw material of the roller

Bearing steel



FAQ



1. You are the manuafacturer or trading company ?

A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.

2. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
