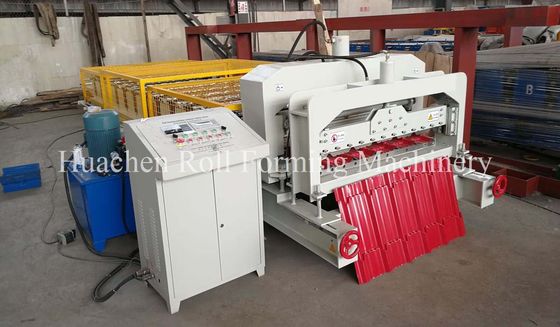

Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover
Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

Gambar besar :  Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC28-200-1000
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

Deskripsi
Type: Chain Drive Tile Roll Forming Machine thickness: 0.3-0.6mm
width: 1250mm warranty: 1 year
Dimension: 6.7*1.6*1.3m equipment base: 300H steel frame
Cahaya Tinggi:

roll forming equipment

,

cold roll forming machine

Product Show:

Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover 0Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover 1

Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover 2Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover 3Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover 4

Note:

♦If the plate with a coating,the coating should be consistent with coating inspection standards of the relevant color-coated,should not have skin off,so as not to effect quality of roll forming.

♦If the material is galvanized steel,the galvanized should be consistent with the relevant testing standards of the galvanized steel,should not have zinc layer off,so as not to effect the quality of roll forming.

Working Flow& Layout



Good Price Metal Glazed Tile Roll Forming Machine

Supplying components of complete machine





NO. Description Quantity (set) Remark
1 5Tmanual decoiler 1
2 Guiding device 1 One complete unit as main machine
3 Pre-cutter 1
4 Forming system 1
5 Transmission system 1
6 Hydraulic guillotine 2
7 Support table 2
8 Hydraulic station 1
9 Control box 1
  Spare parts and tools 1 As attaching list



General parameters

No Item Parameter Note
1 Forming Speed Max2.5 m/min Excludes cutting
2 Forming station Around 16 groups
3 Total Power About 7 KW
4 Total Weight About 4380KGS
5 Voltage 380v,60hz,3p
6 Diameter of shaft 70mm
5 Installation Size 13 * 1.4 M*1.4



Main parts material

No Item Parameter Note
1 Forming Shaft 45# steel with grinding process





2 Forming Roller 45# steel with hard chrome coating
3 Cutting Blade Cr12MoV with hard treatment
4 Control System DELTA PLC& transducer, others are Chint etc.
5 Electrical motor China quality brand
6 Bearing China quality brand
7 Chain China quality brand
8 Hydraulic parts China quality brand









Line Components and Characteristic

Good Price Metal Glazed Tile Roll Forming MachineGood Price Metal Glazed Tile Roll Forming MachineGood Price Metal Glazed Tile Roll Forming Machine

Spare parts(for free)



No. Name Quantity Country
1 Rely Several China
2 Encoder 1pcs China
3 Fuses 2pcs China
4 Normal Button 2pcs China
5 Switch button 2pcs China
6 Forming station bearing 1pcs China
7 Sensor 4pcs

China


After-Sales Service

1. we can produce the special machine,send your drawing to us,we can design for you.



2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.



3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.



The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.



4. engineers available to service machinery overseas.



5. if you come to visit our factory,we can book the room for you, car pick up to send.



Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!



The real data, the most professinal foreign trade team, your best trustable partner.
