|type:||glazed tile roll forming machine||width:||1250|
|Dimension:||7.5*1.5*1.2m||life time:||10 years|

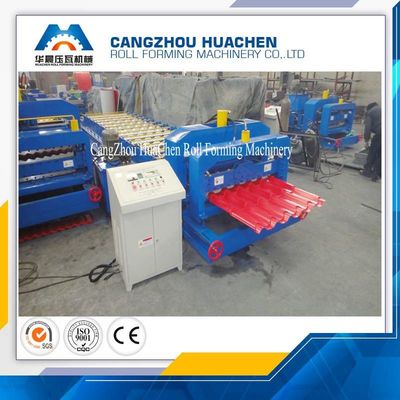

|1. The Product Description of glazed tile roll forming machine|
(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
(2). Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
|Suitable Material||HRB60 or equivalent|
|Material Thickness||0.2-0.6 mm|
|Dimension||About 7.2*1.3*1.1m(L*W*H) , as per the drawing|
You can set the length according to your need.
It is controlled by PLC
which can ensure the accuracy of ±1mm.
Automatically stop and cutting when it comes to the set
B. Components Details
|Roller Material||High grade 45# steel. Hard chrome plating, 0.05mm.|
|Main Frame||350# steel. More stable and no shaking.|
16mm. We use thicker plates to ensure stability
of our products.
|Forming Steps||11-16, according to the drawing.|
|Shaft Material||Φ70 mm, high grade 45# steel.|
Treating process: tempering- finish turning,
high rigidity, hard to deform.
|Cr12, hardness HRC60-62.|
|Treating process: heat treatment- plane abrasion- wire electrode cutting.|
C. Electric Components
|Suitable Power||380V, 50 Hz, 3 phase or according to your need.|
|Screen||7 inch touch screen, easy to operate.|
Well-adapted to various conditions, such as moisture,
Delta VFD-M. It has the advantage of slowing down before cutting,
to ensure the length accuracy (±1mm,
far better than industrial standard ±3mm).
|Omron, made in Japan.|
|It features with high accuracy and stability.|
|2. More Pictures of glazed tile roll forming machine|
|3. The Application of glazed tile roll forming machine|
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,
shutter door machine, floor decking machine and other associated equipment.
Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
15 years' rich experience!
a.Specialized in roll forming machine since 1998.
b.Keeping improving the quality.
|2. Low price||
Save your money from every part!
a. Low labor cost;
b. Convenient transportation;
c. Complete supporting industries.
Ensuring high accuracy and easy to operate!
Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
|4. OEM / ODM||
Customers’design, color & logo are also accepted!
Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
|5. One-Years warranty, whole life service||
Keep troubles far away from you!
Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
