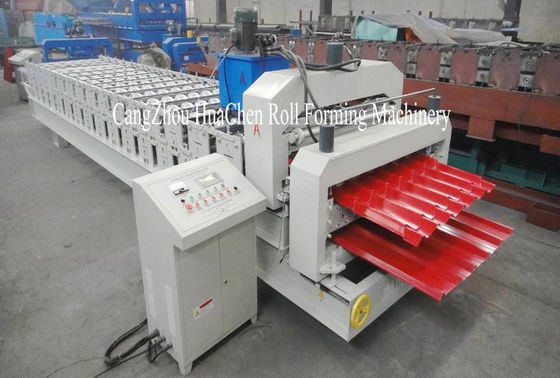

Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer

Sertifikasi
Cina Cangzhou Huachen Roll Forming Machinery Co., Ltd. Sertifikasi
Cina Cangzhou Huachen Roll Forming Machinery Co., Ltd. Sertifikasi
Ulasan pelanggan
Mesin mudah digunakan. Bosnya sangat baik.

—— Mr.Angolon Dari Eropa

Ini adalah produsen yang bagus, komunikator bahasa Inggris yang baik, dan saya suka mesin Anda. Kualitasnya bagus, dan cantik!

—— Mr.Mark Dari Afrika

Pemasok yang bagus! Saya suka pengiriman cepat dan siklus produksi cepat, akan tetap berhubungan dengan kalian.

—— Mr.Jack Dari Amerika

I 'm Online Chat Now

Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer

Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer
Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer

Gambar besar :  Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer

Detail produk:
Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO/CE
Model Number: HC30-25
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1set
Harga: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer

Deskripsi
color: blue Warranty: 1 Year
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min Control system: PLC(imported Brand)
Cahaya Tinggi:

sheet metal roll forming machines

,

corrugated roll forming machine

Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer

Product Description

Item Specification
Decoiler 5 tons /10 tons /12 tons or as your request
Roller material 45# steel , 0.05mm chrome coated / GCR15
Shaft diameter 75mm, 100% solid
Machine frame 400H steel
Machine structure thickness 20mm
Hydraulic cutting Guide Pillar cutting style
PlC brand Delta ,Siemens ,panasonic,
Touch screen computer touchwin
Receiving table 3meters * 2 sets
Chain transmission 1"
Chain wheel 1"
Voltage 380V/50HZ/3phase or as your request
Computer box type placed in ground or fixed on machine
Machine color customzied



Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer 0Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer 1Customzied Color High Speed Roof Tile Roll Forming Machine With Touch Screen Computer 2

Packaging & Shipping

Packaging

1. Tighten to container with steel wire rope and welded machine with container by angel iron

2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)

3. PLC contral system and motor pump are packed in wooden box with water proof paper coverage
