IBR / Corrugated Sheet Metal Roll Forming Machines Thickness 0.3mm-0.8mm

Cina IBR / Corrugated Sheet Metal Roll Forming Machines Thickness 0.3mm-0.8mm pemasok

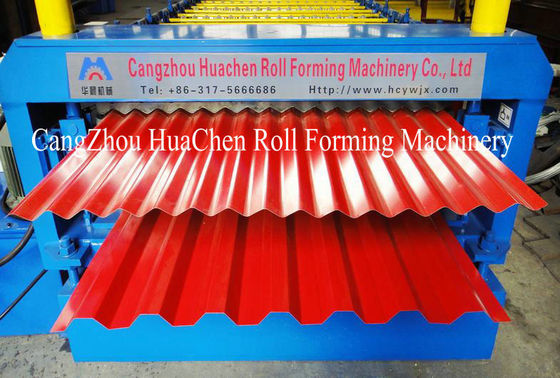

Gambar besar :  IBR / Corrugated Sheet Metal Roll Forming Machines Thickness 0.3mm-0.8mm

Detail produk:

Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Model Number: HC18-30

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1set
Harga: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detil Deskripsi produk



IBR / Corrugated Sheet Metal Roll Forming Machines Thickness 0.3mm-0.8mm







1. Technical Parameter



Number Items UnitType RF-DL
1 Steel Thickness mm 0.3-0.8
2 Forming Speed m/min 8-12
3 Roller stands stand 18 stands bottom layer; 18stands top layer
4 Roller Material mm 45# steel, coated with chrome
5 Shaft material and diameter mm Ф75 45# steel, coated with chrome
6 Main Motor Power Kw 7.5
7 Hydraulic cutting Power Kw 3
8 Hydraulic pressure Mpa 12
9 Power Supply   380V, 50HZ,3 phase
10 Tolerance mm 1.5
11 Material of cutting   Cr12 HRC60-62
12 Control system   PLC with touch screen
13 Machine net weight T 12





2. Machine List

5 ton passive de-coiler 1 set
Guiding Platform 1 set
Main roll forming machine 1 set
Cutting machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Passive Out table 2 units
Safety cover 1 unit







3. Reference pictures



IBR / Corrugated Sheet Metal Roll Forming Machines Thickness 0.3mm-0.8mmIBR / Corrugated Sheet Metal Roll Forming Machines Thickness 0.3mm-0.8mm













4. Main Features



The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets,

or 1 wall & roof sheet and. Customer can choose the type.

  • Variable frequency speed control
  • Multi-purpose for overlap connection
  • Auto power off

5. Company Introduction



Cangzhou Huachen Roll Forming Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
