Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Cina Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control pemasok

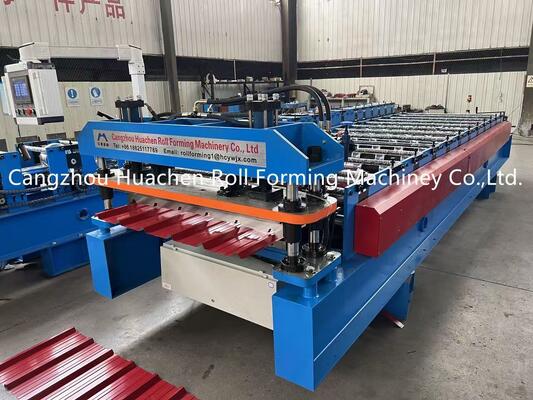

Gambar besar :  Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Detail produk:

Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Model Number: HC24

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1set
Harga: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detil Deskripsi produk
type: Double Decking Roofing Sheet Forming Machine with hydraulic motor control rollers: 19
roller material: No.45 steel warranty: 12 month
Dimensions: 7*1.5*1.5m Thickness of the plate: 0.3-0.6mm

Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Description


Metal roof sheet roll forming machine, glazed tiles rolling forming machine, roofing making machine, wall panel roll forming machine, steel profile roll forming machine, sandwich panels roll forming machine, floor deck roll forming machine, C/Z/U shaped galvanised steel bar roll forming machine, C purlin forming machine, china machinery, production machine

Competitive Advantage:
1. Full Automatic
2. Welded iron type
3. Save money
4. excellent quality
5. Operate easily
Specification

NO. ITEM PARAMETER NOTE
1.

Suitable
material
Type Pre-painted sheet,
Galvanized sheet

Width(mm) 1200mm
Thickness(mm) 0.3-0.8mm
Yield stress(mm) G220-G300
2. Product
specifications
Detail as the attached file
Length Any length
3. Power
requirement
Type 380v/3ph/50hz Motor brand shanghai Lichao
Main Motor power 4kw
Cutter power 4kw
4. Forming speed(m/min) 8-10m/min Not include the time of cutting
5. Manual Decoiler
(Optional)
Type Manual
Max capacity 5t
Suitable coil OD(MM) 1200
Suitable coil
ID(MM)
508
6. Forming stand 14 Depend on actual design
7. Thickness of structure 16mm
8. Forming shaft diameter(mm) 70solid
9. Type of cutting

Roll formed and
length-set cutting


10. Control system Panasonic PLC and inverter
11. Install dimension(depend on the final design) 5.2m×1.1m×1.3m Without panel length
12. Total weight (Approx) 3T Depend on final design




Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
Products receiving
Double Decking Roofing Sheet Forming Machine with hydraulic motor control
MachineComponents

No Name Quantity Remarks
1 Decoiler 1set Up to customer
2 Main machine Pre-cutting device 1set Up to customer
Feeding device 1set
Roll forming system 1set
Post cutting device 1set
Hydraulic system 1set
3 Electric control system 1set
4 Supporter/Automatic Stacker

1set



Single layer Roofing Sheet Roll Forming Machine with hydraulic motor controlSingle layer Roofing Sheet Roll Forming Machine with hydraulic motor controlSingle layer Roofing Sheet Roll Forming Machine with hydraulic motor control
