7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed

Cina 7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed pemasok

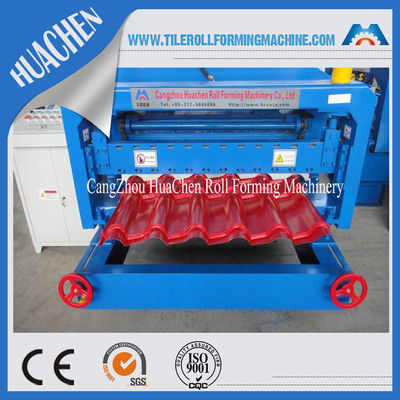

Gambar besar :  7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed

Detail produk:

Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO/CE
Model Number: HC28

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1set
Harga: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detil Deskripsi produk
type: glazed tile roof sheet control system: PLC control
raw material thickness: 0.3-0.6mm Sertifikasi: CE ISO
After sales: Engineers available to service overseas Packaging: standard export package
Cutter material: Cr12

7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed





Quick Detail:

The machine is for continuously roll forming and pressing step tiles on series of product profile. The length can be set up or unlimited and the depth of each step is from 10 to 30mm adjustable.
This roofing tile roll forming line consists of hydraulic single head type uncoiler, roll forming main machine, hydraulic forming tile machine, hydraulic automatic cutting machine, products run out table, PLC automatic control cabinet.


Composition of Machine


Roll forming main machine……………………………1 unit
Cutting system…………………………………….…..1 unit
Pressing system…………………………………….…1 unit
Manual de-coiler……………………………………… 1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Spare tools……………………………………………...one box



Applications:


The colored steel tiles produced by this line look beautiful, elegant and noble. They are widely used as the roof of garden-like factory, hotel, exhibition center, villa, civil construction, etc.

Specifications:


1: Coil width: up to profiles
2: Working speed: 4-8 m/min
3: Roll station: 18-24 stations

4: Material of roller: 45# steel, polished and coated with chrome
5: Material of main shaft:45﹟forge steel diameter roller: Ф75mm
6: Main power: 7.5 kw
7: Forming thickness: 0.3mm—0.8mm color steel
8: Transmission: by chain 1.2 inch single line
9: Press system: adopt Cr12 material
10: Size of machine: about 9500x1600x1200(mm) L x W x H
11: Weight: about 8000Kgs
12: Color: blue
13: Seller will provide material to test machine, the end product should be up to 3-5m at most. When the product is same as signed produce, seller will stop to test the machine.
14: Machine adopt new station (such station is very strong and the life is more long)
15: Machine should be have four 350mm height legs (joint by screw)
16: Feeding and guide: adopt 45# material, and it is east to adjust the feeding size
17: Complete machine adopt cover: it is insure operator’s safe.
18: Cutting:

(1) Hydraulic cutting
(2) Cutting after forming: Cut the sheet after roll forming to required length
(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4) Material of blade: Cr12with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: 3m +/- 1.5mm

7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed
7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed
Technological Process


Decoiling—feeding and guide —roll forming----press---cut to length—product packing manual
