18 Groups Forming Roller Shutter Door Roll Forming Machine For Window / Door Frame

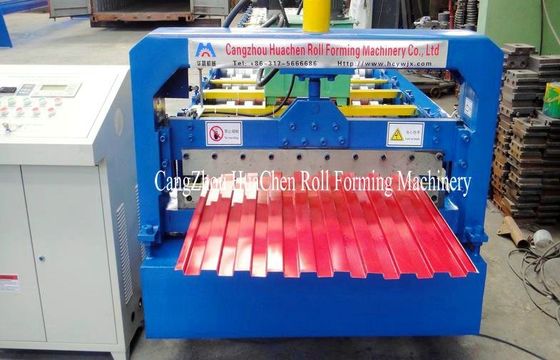

Gambar besar : 18 Groups Forming Roller Shutter Door Roll Forming Machine For Window / Door Frame

Detail produk:

Tempat asal:	Botou Hebei China
Nama merek:	HC
Sertifikasi:	ISO
Nomor model:	HC800

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1set
Harga:	5000-19000USD
Kemasan rincian:	Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman:	30days
Syarat-syarat pembayaran:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan:	20 sets/month

Kontak

18 Groups Forming Roller Shutter Door Roll Forming Machine For Window / Door Frame

Deskripsi

usage:

shutter door

thickness:

0.3-0.6mm

warranty:

1 year

Cahaya Tinggi:

steel roll forming machine

door frame roll forming machine

18 Groups Forming Roller Shutter Door Roll Forming Machine For Window / Door Frame

18 Groups Forming Roller Shutter Door Roll Forming Machine For Window / Door Frame 0

General Description
Roller shutter door forming machine is able to produce rolling fire doors, storm doors, rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, insulated fire doors and other doors. This kind of machine is provided with PU injection or without PU injection. We can customize the machine if you have special requirements. We promise our product quality is high and the price is competitive.
Application:
Roller shutter forming machine is widely used for producing products used in industrial and commercial fields, retail areas, airports, hotels, institutions, malls and shopping centers. It is designed especially for manufacturing dock doors, distribution outlets, food concession stands and other panels.
Features:
1. Roller shutter door forming machine is configured with domestic brand or Italy brand PU online foaming facility.
2. It has double head uncoiler help to increase coil loading efficiency.
3. The straightening device can be adjusted to decrease the twist or curve distortion caused in process of roll forming.
4. The sufficient rolling stations guarantee a perfect profile section.
5. Roller shutter door forming machine adopts PLC and inverter controller.
6. Non-stop shearing adopted can increase working efficiency.
Technical Specifications for Roller Shutter Door Forming Machine
1. PU injected roll shutter door machine
1.1 Steel coil thickness0.3-0.5mm
1.2 Steel coil width117-310mm
1.3 Rolling stations41
1.4 Main motor power11KW
1.5 Total weight: approximately 12 Ton
1.6 Working speed: 20-28m/min
2. Single sheet roll shutter door machine

NO.	Item		Parameter	Remark
1	Suitable material	Type	Galvanized steel	-
Thickness (mm)		1.0	-
Yield Strength (Mpa)		450-550	-
Width (mm)		120/145/157	-
2	Forming Speed (m/min)		About 20-25	exclude cutting time
3	Forming main motor power(KW)		3*6	Depend on final design
4	Main machine Hydraulic station power(KW)		5.5	Depend on final design
5	Total power		23.5	Depend on final design
6	Power		AC415V, 50Hz, 3 Phase	As per customer
7	Dimension (L×W×H, m)		20×3×1.5	Depend on final design
