Toching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5Kw

Cina Toching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5Kw pemasok

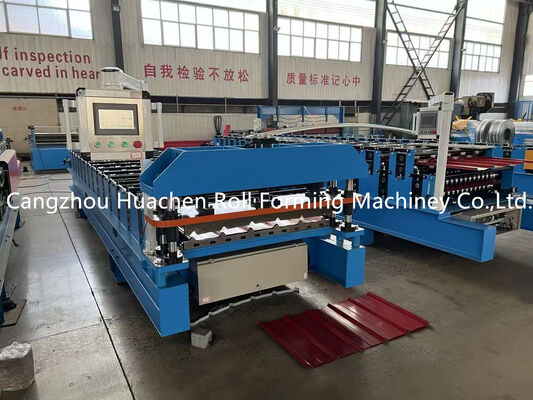

Gambar besar :  Toching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5Kw

Detail produk:

Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Model Number: HC30

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1set
Harga: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detil Deskripsi produk
type: Roofing Sheet Making Machine Aluminium Roll Forming Machine rollers: 13
roller material: No.45 steel warranty: 12 month


Roofing Sheet Making Machine Aluminium Roll Forming Machine Application

1. Specification of the material

Suitable Material: Colored Steel plate, Galvanized steel

Width of the raw material :1250mm

Thickness :0.3-0.8mm

2. Machine Detailed Parameters

Roll Forming Machine HC30
Machine structure Guide pillar structure
Total power

Motor power-5.5kw

Hydraulic power-4kw

Roller stations About 13 stations
Productivity 0-15m/min
Drive system By chain
Diameter of shaft ¢70mm solid shaft



Voltage



380V 50Hz 3phases (Customized)
Color Of The Machine Yellow and blue



Container need



40GP container
Deliver Time 70 days
Terms Of Payment 30%T/T 70% pay before shipment



4. The Chart of Process Flow



Manual Uncoiler—Pre-cutting—Roll Forming—Cutting—out table5.5KW Automatically Roof Sheet Roll Forming Machine 40GP Container



5. Specification of Components

(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

(2)Pre-cutting

  • Pre-cutting install after feeding for customer change coil only
  • Cutting type: manual
  • Function:for coil replacement
  • Quantity: 1



(3) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: guide pillar



(4) Mobile Protective mesh

  • ​To avoid accidents, the machine will be covered with the mobile protective mesh



(5) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(6) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
Toching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5KwToching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5KwToching Screen Roofing Sheet Making Machine Aluminium Roll Forming Machine 5.5Kw
