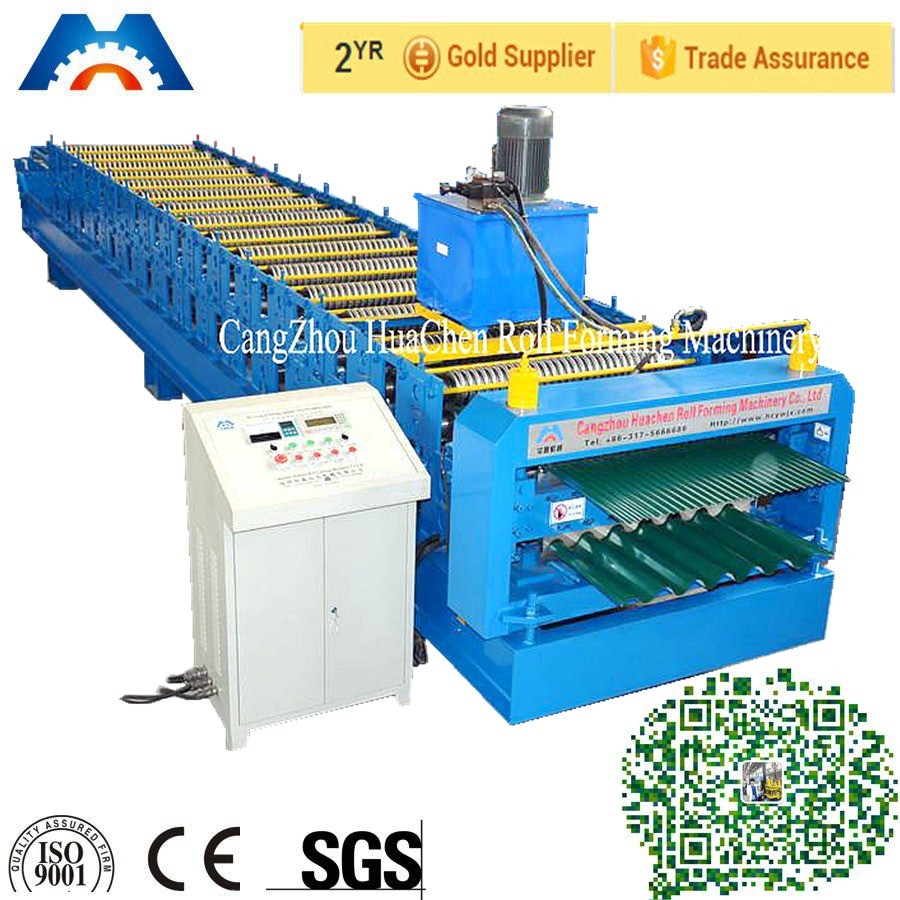

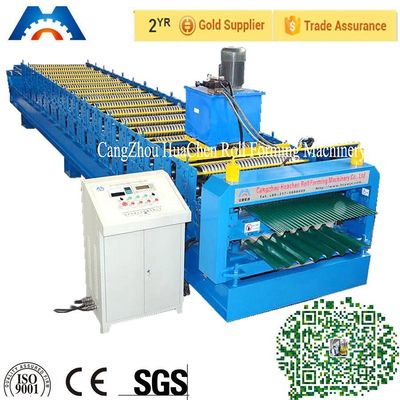

High Speed Double Layer Roll Forming Machine Automatic Hydraulic Cutting
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 15/18 rows
4. Dimensions: 10.3*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
High Speed Double Layer Roll Forming Machine Automatic Hydraulic Cutting Main parameter
|
No. |
Main parameter of Double layer roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250mm |
|
3 |

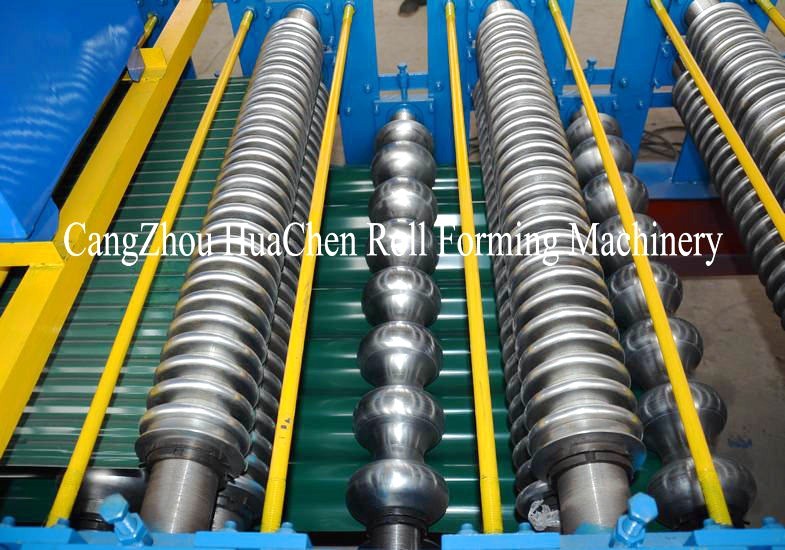

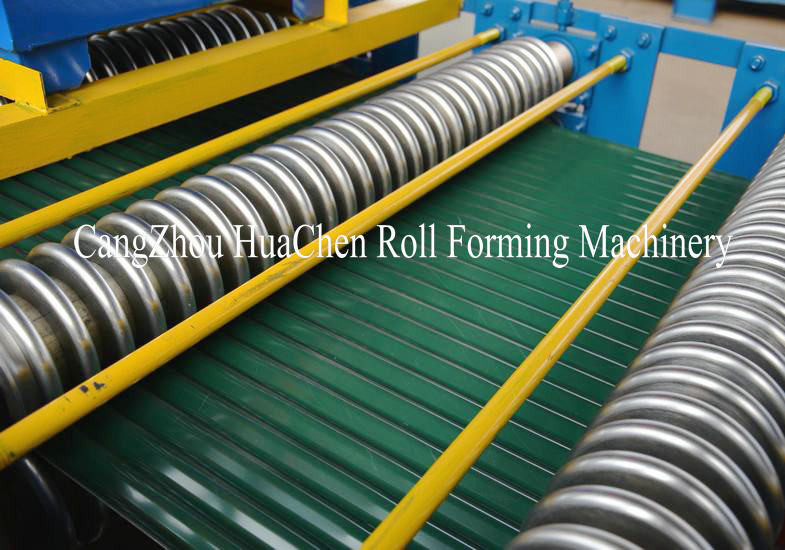

Rollers |
upper level :15 rows |
|
4 |
Dimensions |
10200*1550*1910mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
15-20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Application

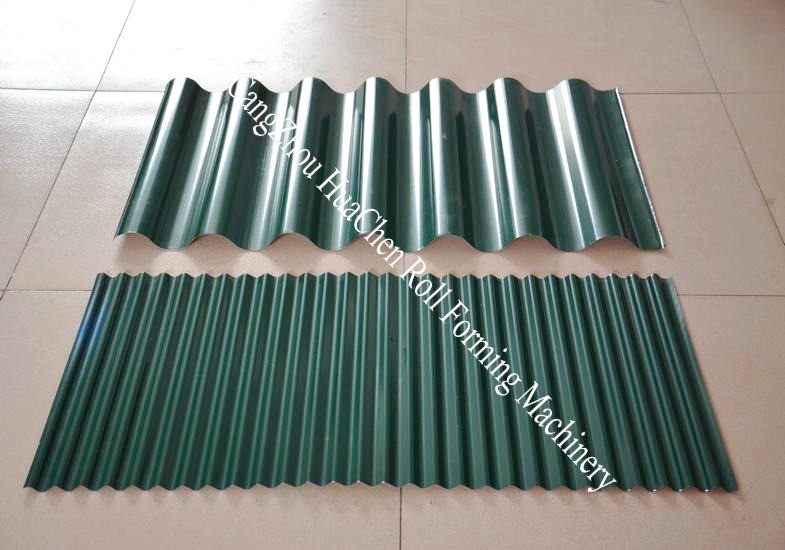

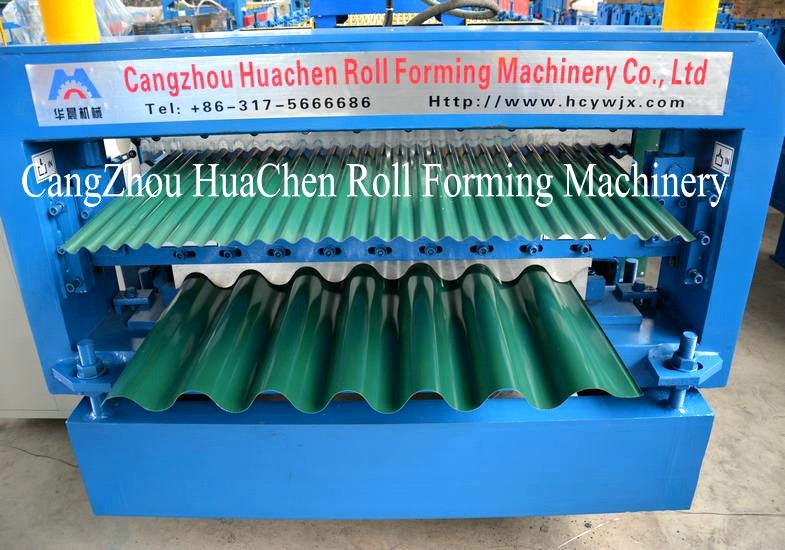

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Competitive Advantage
1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain
Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
Worrying about machine packing and delivery ?
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper coverage
3.All machines need one 40'container to hold.
How to make payment ?
Payment terms: 30% T/T as deposit when contract signed, and 70% balance before shipment.
Delivery time: 30-45 days after receiving deposit
Where is your factory located ? How can I visit you ?
Huachen Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:
1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
Want a free quotation to make budget ? Just send me inquiry now
Kontak Person: Jing
Tel: +86 188 2511 7789 / +86 182 3376 6102
Faks: +86-317-5666689
