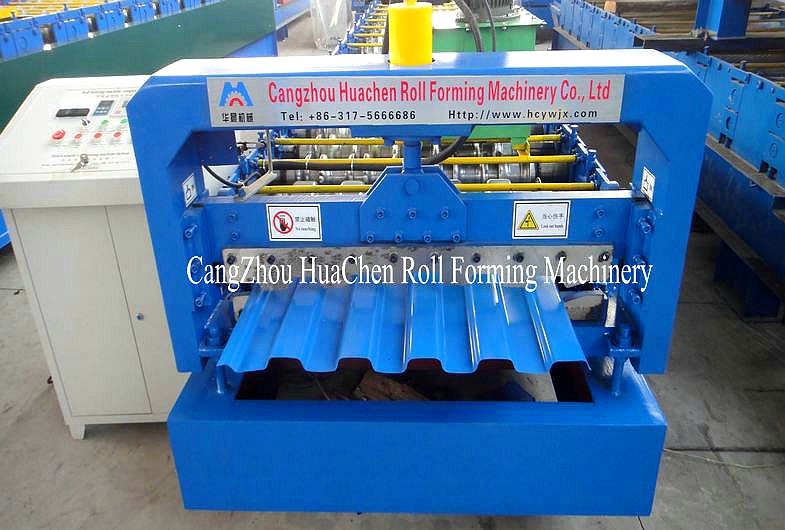

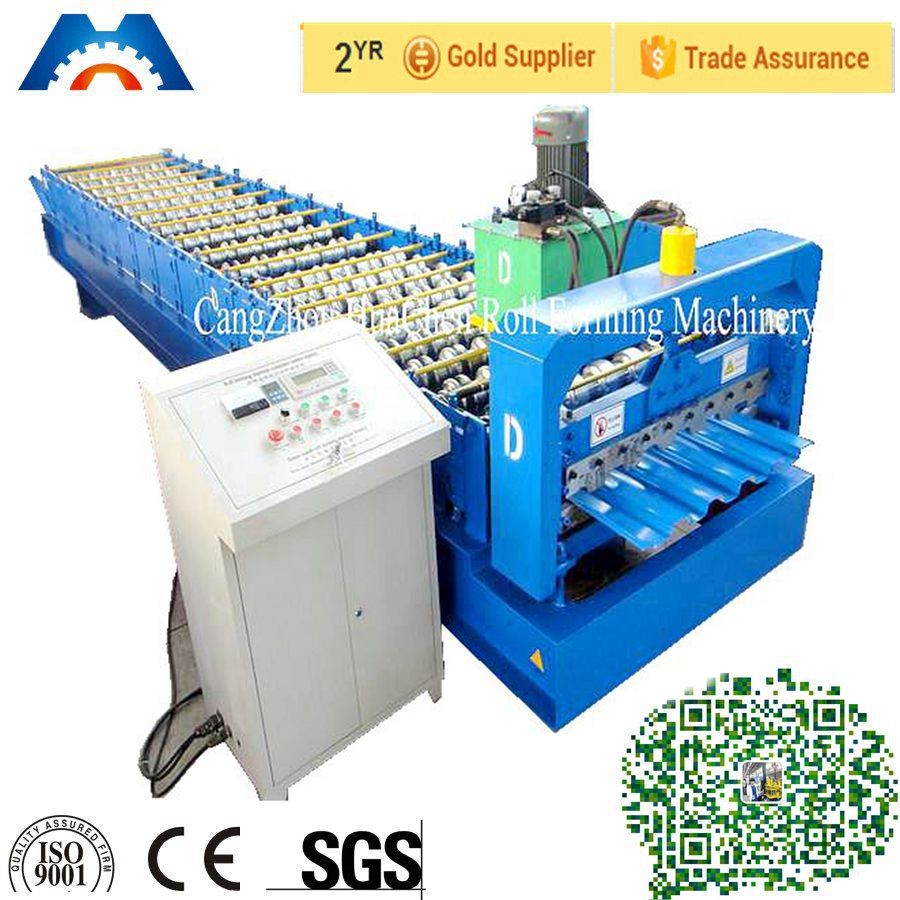

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use
19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use
19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

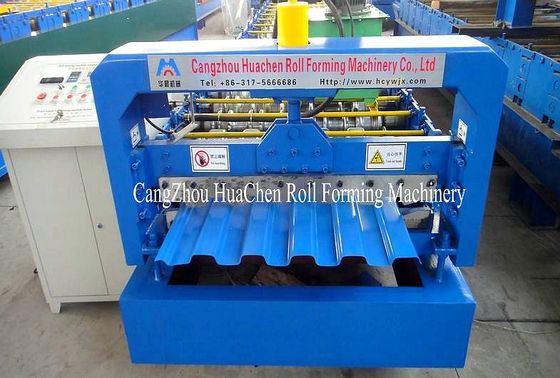

Gambar besar :  19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC25-155-820
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 8000-19000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month
Kontak

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

Deskripsi
Usage: roof cladding Roller material: 45# steel
Capacity: 15m/min Thickness: 0.3-0.8mm
Material: G550
Cahaya Tinggi:

cold roll forming machine

,

roof panel roll forming machine

Steel Roof Sheet Roll Forming Machine for Roof Cladding



19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 019 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 119 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 2

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000mm

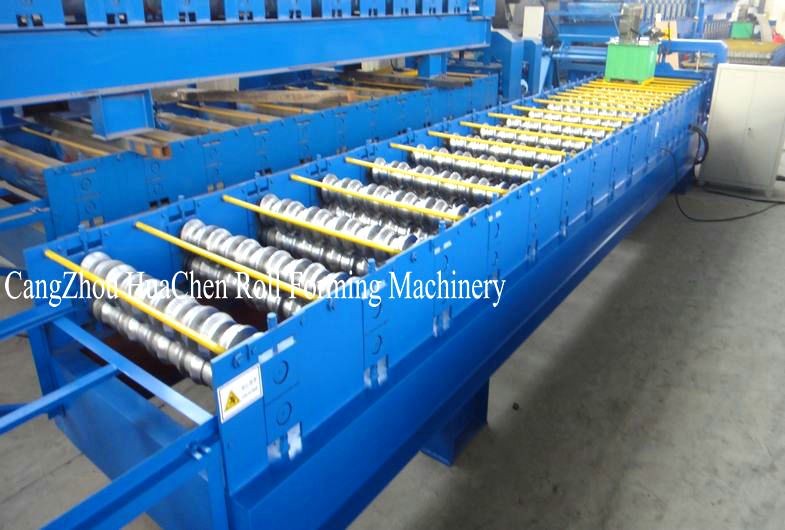

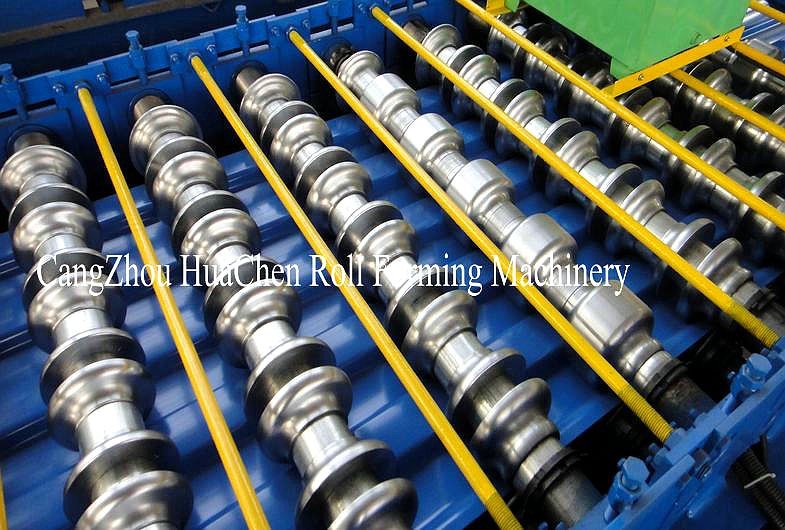

3. Rollers: 19 rows

4. Dimensions: 9.1*1.45*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Steel Roof Sheet Roll Forming Machine for Roof Cladding Main parameter

No.

   Main parameter of Steel Roof Sheet Roll Forming Machine for Roof Cladding

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Rollers

19 rows

4

Dimensions

9100*1450*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

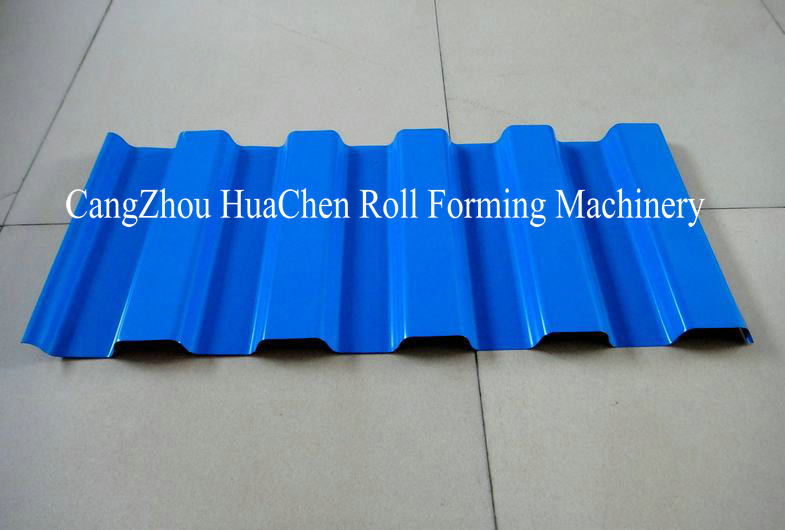

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage





1. CE certification

2 .ISO certification

3. working life 20 years

4. high quality steel

5. High efficiency

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 3

Label:

roof tile roll forming machine,

roof panel roll forming machine,

cold roll forming machine
