380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade

Sertifikasi
kualitas baik Lembaran atap mesin roll forming untuk penjualan
kualitas baik Lembaran atap mesin roll forming untuk penjualan
Mesin mudah digunakan. Bosnya sangat baik.

—— Mr.Angolon Dari Eropa

Ini adalah produsen yang bagus, komunikator bahasa Inggris yang baik, dan saya suka mesin Anda. Kualitasnya bagus, dan cantik!

—— Mr.Mark Dari Afrika

Pemasok yang bagus! Saya suka pengiriman cepat dan siklus produksi cepat, akan tetap berhubungan dengan kalian.

—— Mr.Jack Dari Amerika

I 'm Online Chat Now

380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade

Cina 380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade pemasok
380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade pemasok 380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade pemasok

Gambar besar :  380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade

Detail produk:

Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Model Number: HC28

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1set
Harga: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detil Deskripsi produk
type: cold roll forming usage: villa roof
thickness: 0.3-0.6mm warranty: 1 year
Power(W): About 12KW Dimension: 8700*1550*1910mm
Way Of Drive: 1.2 inch single chain

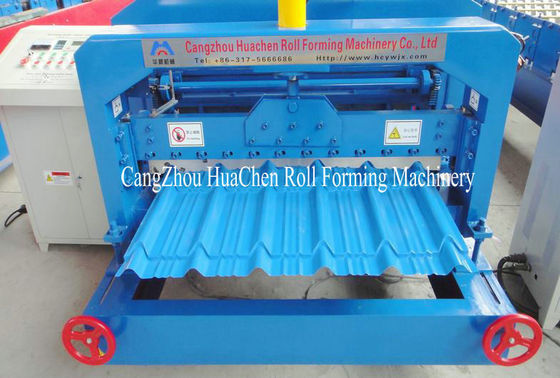

Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade



Description:

We manufacture Roll Forming machine,European roller shutter machine,C & Z purlin machine,Roof & wall forming machine,

Octagon tube machine,Guardrail forming machine,Tile roof forming machine,Door frame forming machine,Down pipe forming

machine,Slitting line,Sandwich panel line,Floor decking forming machine,Cable tray forming machine,uncoiler and recoiler,

Double-layer forming machine,Ridge cap forming machine,Cut to length line,Shearing and press brake machine,T-bar forming

machine,roller shutter slat forming machien,etc.

380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade380V 50Hz Steel Tile Roll Forming Machine with PLC Compture Control System / Cr12mov Blade



Applications:

Construction Food Services Lawn & Garden Shelving
Automotive Fencing Lighting Store Fixture
Display Industry Furniture Material Handling Sporting Goods
Farming HVAC Mining Transportation.etc

Specifications:

Suitable to process colored steel plate, galvanized board
Width of the plate 1200mm
Rollers 18 groups
Rolling material Forging steel 45#
Rolling galvanization thickness 0.3-0.7mm
Material of the cutting blade Cr12mov
Dimensions Approx7.2m*1.5m*1.5m
Power 5.5kw
Thickness of the plate 0.3-0.7mm
productivity 10m-15m/min
Diameter of the roller 70mm
Weight About 4.5T
Voltage 380V 50Hz
Processing precision Within 1.00mm
Equipment components

Man-made uncoiler,roll forming machine,

Compture control system

Hydraulic control system

Press foming cutting and stamping

Transportation One complete equipment need one 40 feet container to hold

Competitive Advantage:

HC Machinery is a manufacturer that specializes in custom roll forming machinery. With our advanced techniques and experienced staff, we can produce simple profiles as well as complex components with precision tolerances. Most of our main production staff have been operating roll formers for about 10years, which means you will receive quality machinery to help you to creat high values.
