Detail produk:
|
| color: | blue | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cut |
| per month: | 30 sets | ||
| Cahaya Tinggi: | metal forming machines,cold roll forming equipment |
||

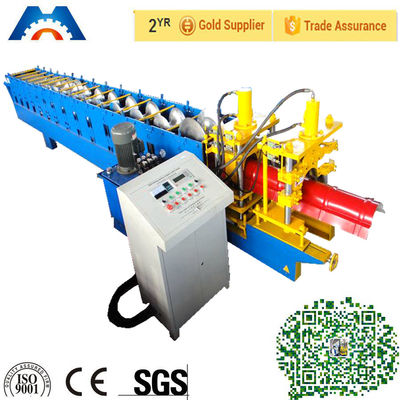

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine
|
Total length of equipment |
5.5m (depend on design) |
Width |
0.85m (depend on design) |
height |
1.2m (depend on design) |
| Motor Power | 3Kw+3Kw | Operating Voltage | 380V | ||
| Production speed | 8 - 10 m / min | ||||
| transfer method | Chain drive | ||||
| Machine forming shaft |
A total of 10 rows of large shaft: 250H steel, vertical plate 12mm |
||||
| Adjust the set | Using 45 # steel seamless steel pipe finishing | ||||
| Wheel material | 45 # steel hard chrome plated | ||||
| Shaft material | 45 # steel shaft diameter: 65mm solid shaft | ||||
|
Forming part |
Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast. | ||||
| Numerical control system |
PLC panel, KEL-320 displa |
||||
| counter | The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP | ||||

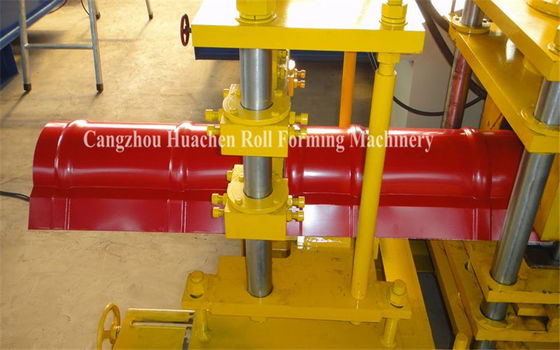

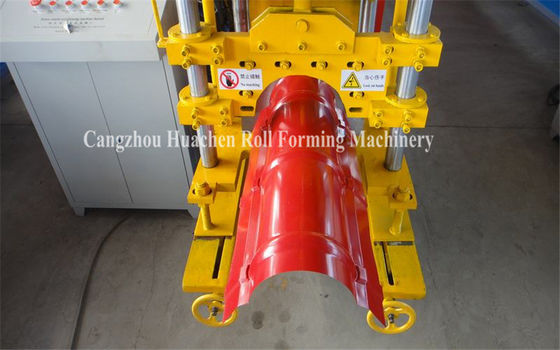

| Cut | 3Kw pumping station, shear pressure type equipment | ||||
| Pressure plate thickness | 0.3—0.8mm | ||||
| Random attachments |
The use of a manual, a gift rack |
||||
| warranty period | 12 months | ||||
Description:
Main parameter
|
No. |
Main parameter of Ridge Cap Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
400mm |
|
3 |
Rollers |
15rows |
|
4 |
Dimensions |
8100*1350*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

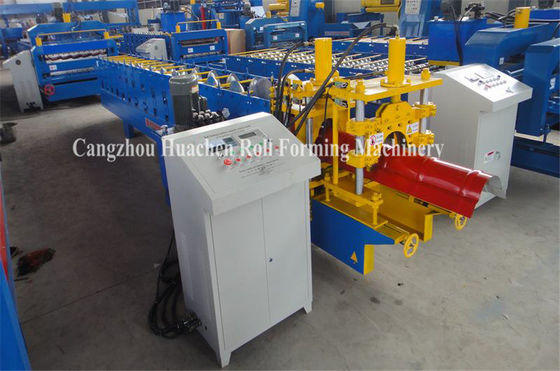

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application

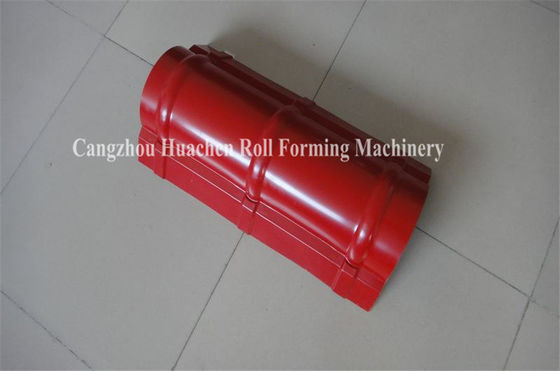

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. save space
2. easy install
3. perfect service
4. excellent quality
5. save freight
