Detail produk:
|
| color: | as your require | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cuting |
| establish year: | since1996 | workers: | 100 |
| customers: | over 90 countries | certification: | CE/ISO 9001 |
| Cahaya Tinggi: | cold roll forming machine,roof panel roll forming machine |
||

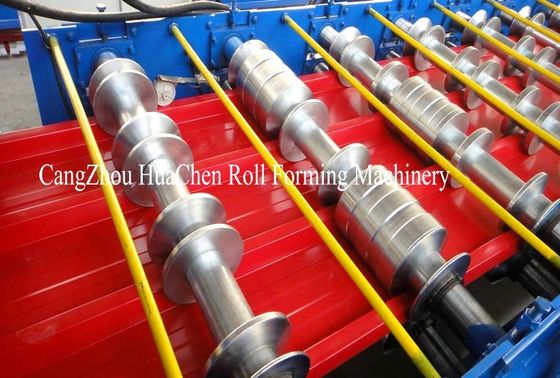

PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

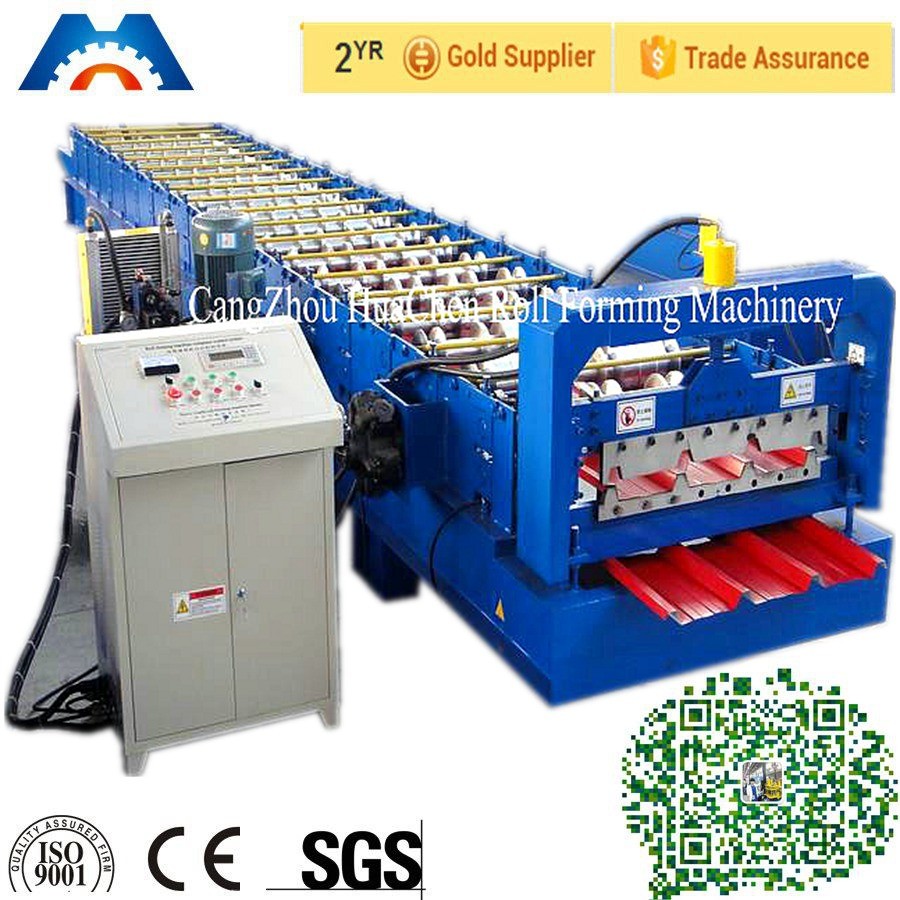

This machine Trapezoidal roof roll forming machine features high forming speed, rational design, simple operation and durability. Roof roll forming machine includes hydraulic decoiler with breaking device, roll former with tooling, hydraulic cutoff machine, run out table and automatic stacking device, and more.It suits for forming PPGI coil and embossed aluminum coil material.

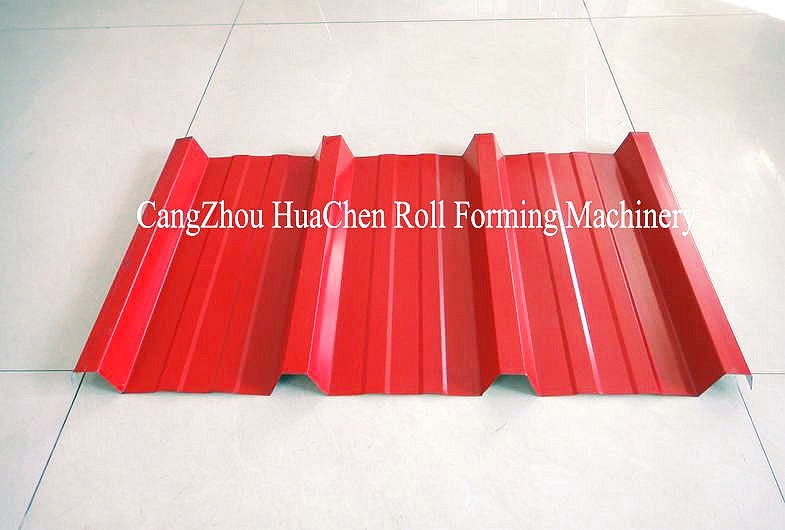

Supply various roof/wall profiles
Accept customized design
Machine working life could be more than 10 years
Supply technical support for all life
The machine can work as fast as 40m/min with no stop cutting system
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate:1000mm

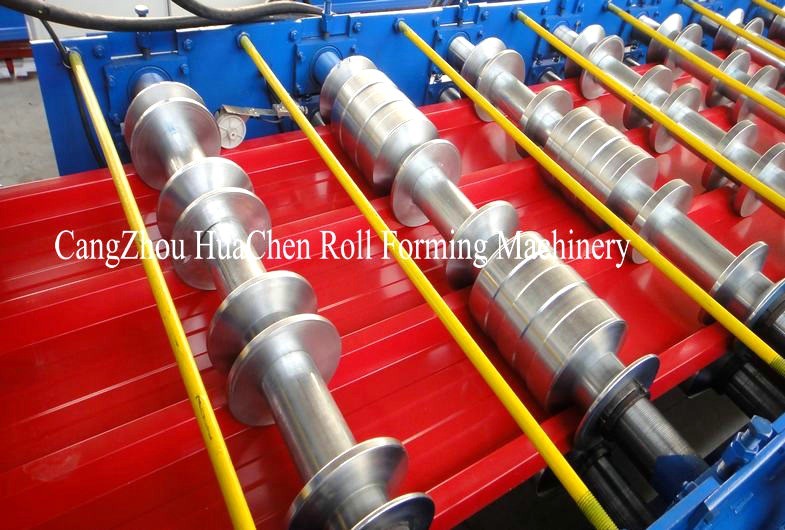

3. Rollers: 18 rows
4. Dimensions: 9.1*1.45*1.51m
5. Power: 7.5kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Roof Panel Roll Forming Machine Main parameter
No. | Main parameter of Roof Panel Roll Forming Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1000mm |
3 | Rollers | 19 rows |
4 | Dimensions | 9100*1450*1510mm |
5 | Power | 5.5kw |
6 | Rolling material | 45# steel(plated chrome on surface) |
7 | Thickness of the plate | 0.3-0.6mm |
8 | Productivity | 20m/min |
9 | Diameter of the roller | Φ70mm |
10 | Voltage | 380V 50Hz 3phases |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |

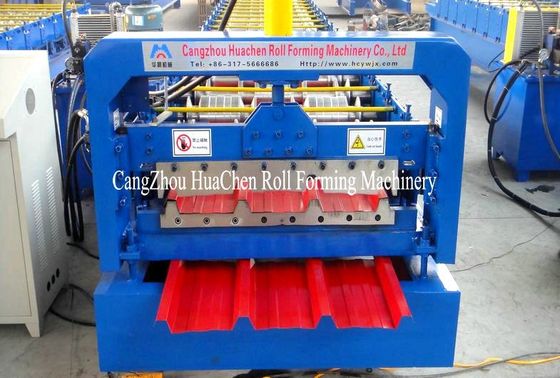

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Intruduction:

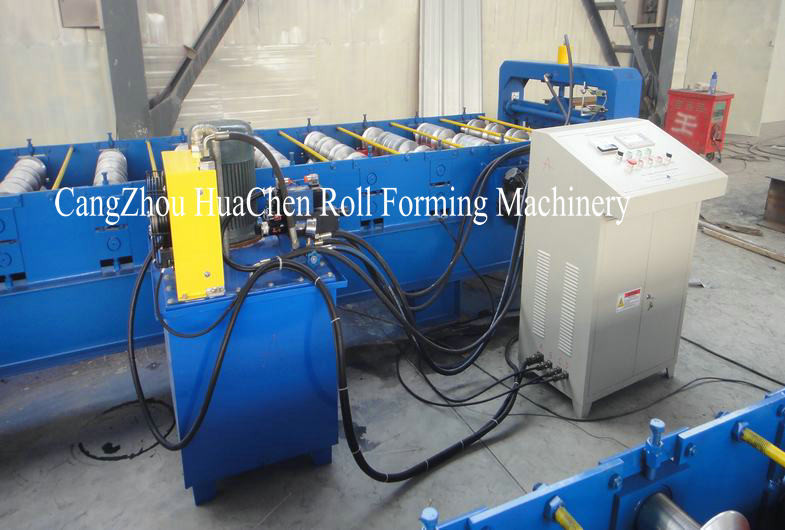

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use
At present, 90% of our machine have been exported. Our roll forming machine have been exported to the USA,
Romania, Turkey, India, Malaysia, Russia, Kazakhstan, Congo, Algeria, Bolivia, Sri Lanka, Etc.
Our Pursuit of "First rate quality, Reasonable Prices and Comprehensive after sales service"
