Detail produk:
|
| color: | blue | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting system: | hydraulic cut |
| per month: | 20 sets | established year: | 1997 |
| workers: | 100 | ||
| Cahaya Tinggi: | wall panel roll forming machine,metal deck roll forming machine |
||

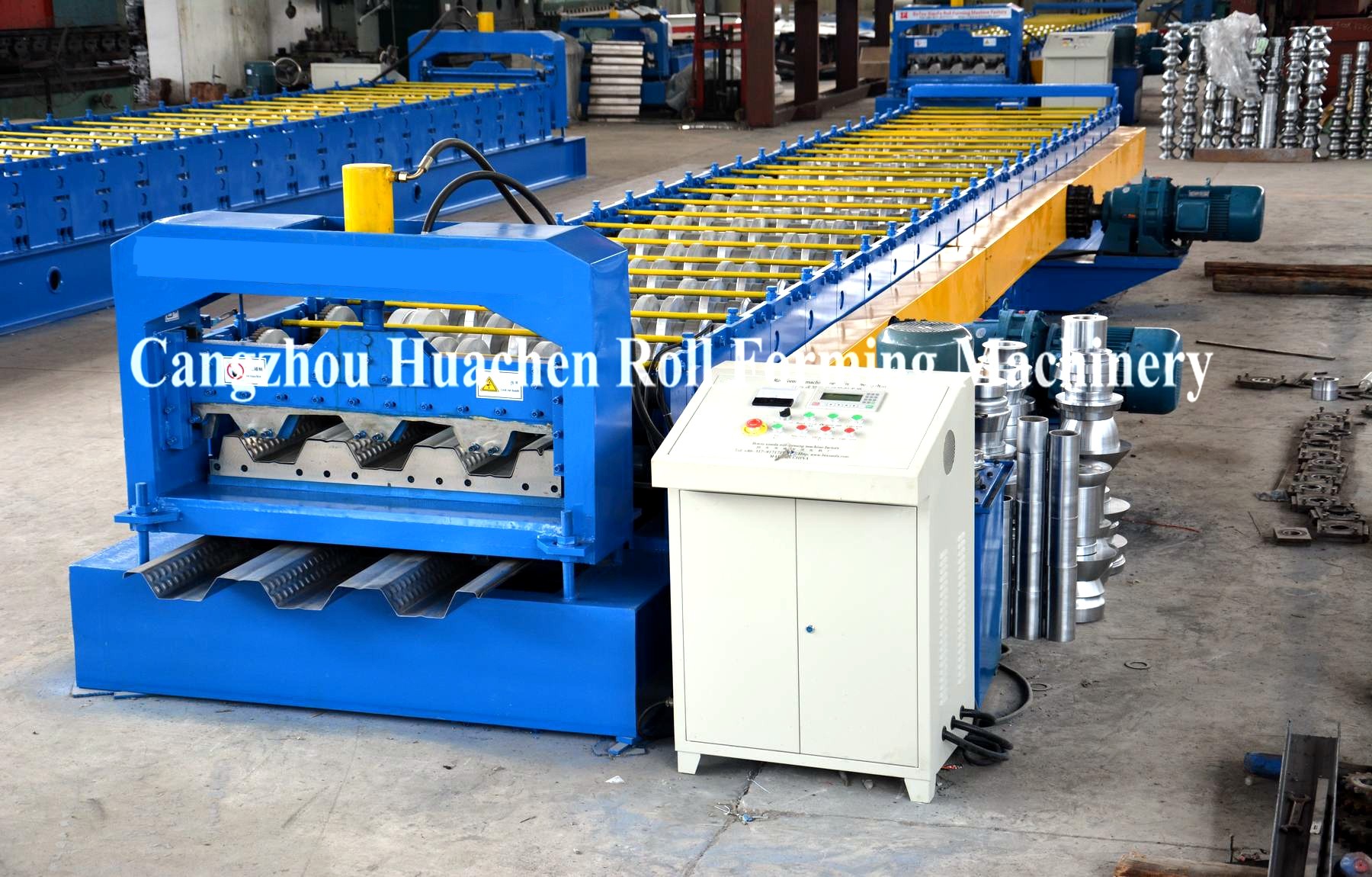

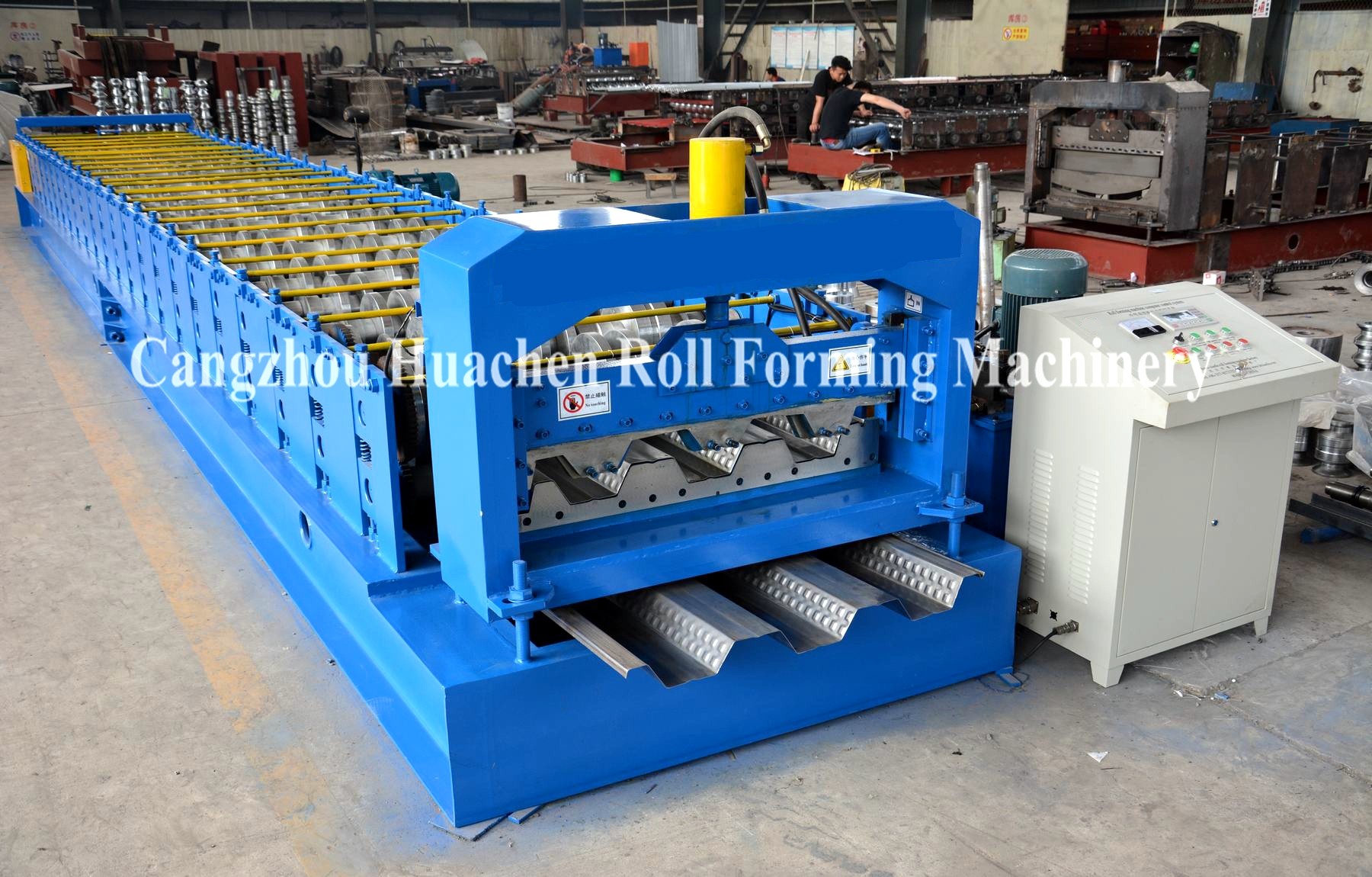

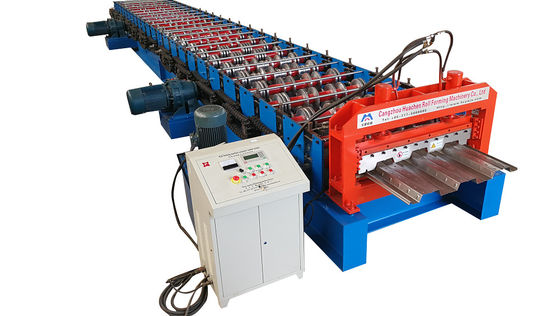

Precise Steel Floor Deck Roll Forming Machine Long Life
With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Floor Deck Roll Forming Machine to our honorable clients. Our offered machine is manufactured under the stern surveillance of our ingenious professionals using optimum quality components and modular technology in adherence with set international norms. Mainly used for plate forming applications, clients can purchase this Floor Deck Roll Forming Machine from us at pocket friendly prices.
Floor Deck Roll Forming Machine Main parameter
|
No. |
Main parameter of Floor Deck Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1220mm |
|
3 |
Rollers |
24 rows |
|
4 |
Dimensions |
11400*1.85*1.61m |
|
5 |
Power |
33+11.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Product application: The metal deck produced by floor deck forming machine ia used as decking of building; It has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
Competitive Advantage
1. CE certification
2. hydraulic motor drive
3. Exported to more than 70 countries
4. suitable for various kinds of steel plate
5. voltage according to customer request
