Detail produk:
|
| color: | as your require | type: | Roofing Sheet Roll Forming Machine |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cuting |
| establish year: | since1996 | workers: | 100 |
| customers: | over 90 countries | certification: | CE/ISO 9001 |
| Cahaya Tinggi: | roof tile roll forming machine,roof panel roll forming machine |
||

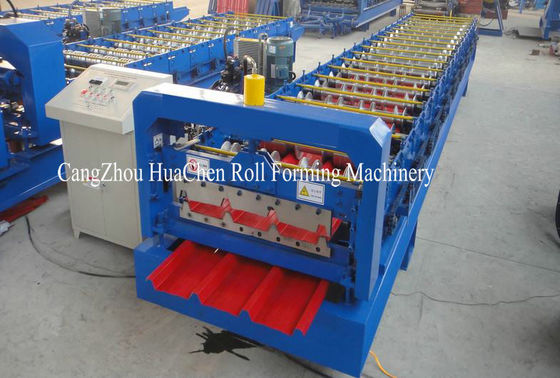

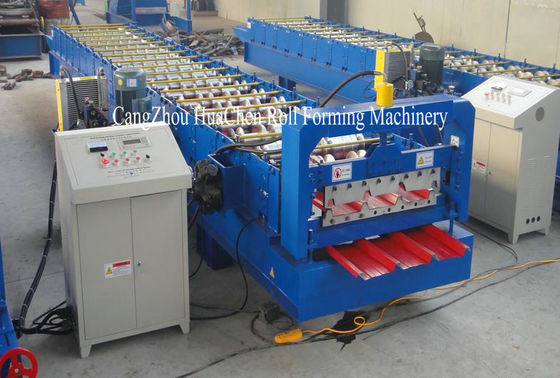

High RIB Color Steel Roofing Sheet Roll Forming Machine 38mm Height
Single Color Steel Sheet Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate:1000mm
3. Rollers: 18 rows
4. Dimensions: 9.1*1.45*1.51m
5. Power: 7.5kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Roof Sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roof Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |

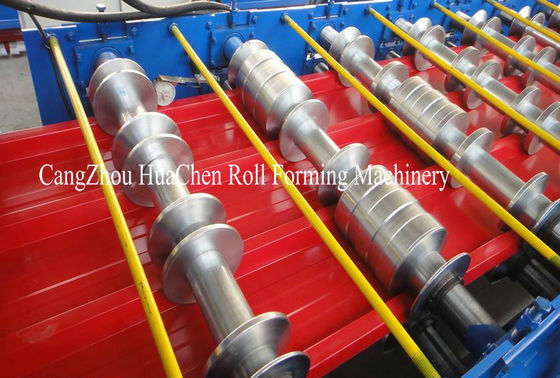

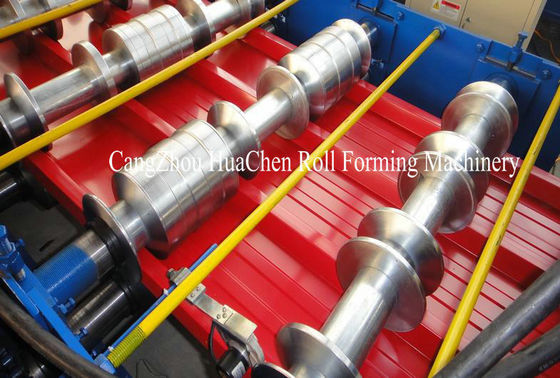

Rollers |
19 rows |
|
4 |
Dimensions |
9100*1450*1510mm |
|
5 |
Power |
5.5kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface)
|
|
7 |
Thickness of the plate |
0.3-0.6mm |
|
8 |
Productivity |
20m/min |
|
9 |
Diameter of the roller |
Φ70mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |

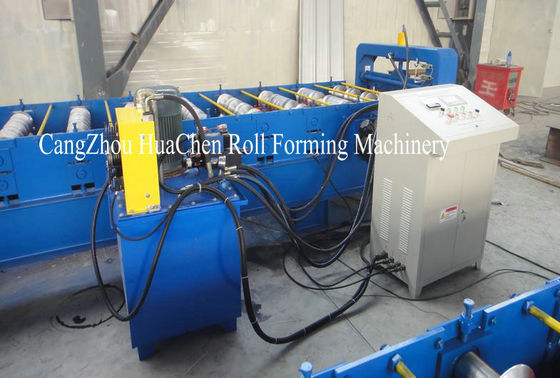

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use
