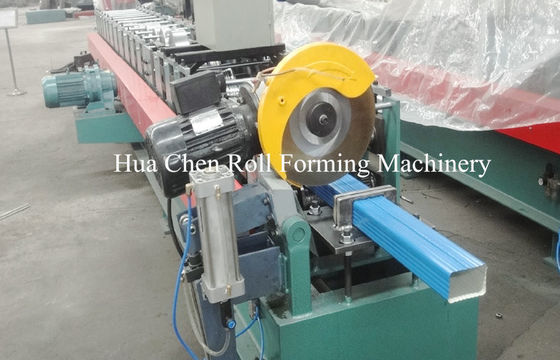

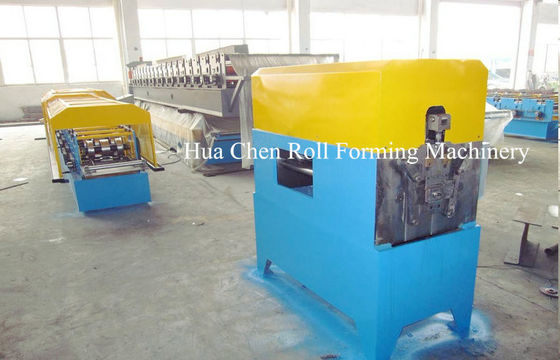

Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine

Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine
Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine

Gambar besar :  Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC330
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 28000-69000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine

Deskripsi
Type: Square Material: 333mm
Thickness: 0.4-0.5mm Speed: 8-10m/min
Warranty: 1 year Certificate: ce iso
Cahaya Tinggi:

Down pipe roll forming machine

,

pipe roll forming machine

Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine



Equipment components:

Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting



Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine







Item Specification
Material Type Pre-painted steel coil & galvanized coils
Thickness (mm) 0.4-0.6
Yield strength (mpa) 235-345
Roller material 45#Chrome steel
Forming speed(m/min) About 8
Speed adjusting mode AC Frequency
Cutting mode Hydraulic cutting
Cutter material Cr12 mold steel with quenched trreatment
Length measurement Encoder
Control mode Mitsubishi PLC
Main motor power (kw) 4kw (Depend on final design)
Hydraulic station power 7.5 kw (Depend on final design)
Total power (kw) 11.5kw



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 330mm

3. Rollers: 15 rows

4. Dimensions: 7.4*1.15*1.51m

5. Power: 5.5+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6 mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine 0Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine 1Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine 2Gutter roll forming machine/Square Type Downpipe Forming Machine/downspout steel squar tube making machine 3



Description:



Downspout Roll Forming Machine  Main parameter

No.

   Main parameter of Downspout Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

330mm

3

Rollers

15rows

4

Dimensions

7400*1150*1510mm

5

Power

5.5+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ66mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

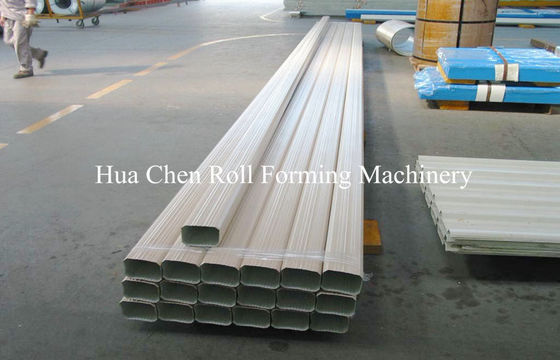

Application



The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.





FAQ



1). Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We

need your machines running in order to keep your business running.



2). Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3). Q: How does your factory do regarding quality control?

A: Quality is priority. WILLING People always attach great importance to quality control from the very

beginning to the end of the production. Every product will be fully assembled and carefully tested before

it's packed for shipment.



4). Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name

components.



5). Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
