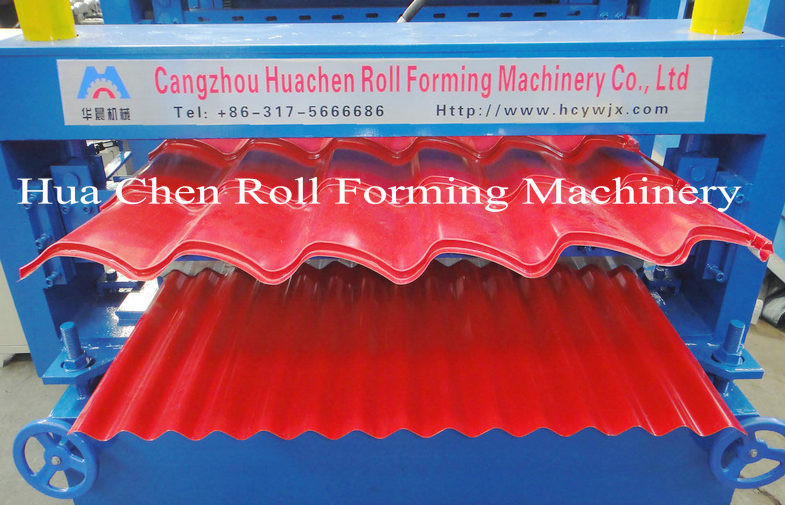

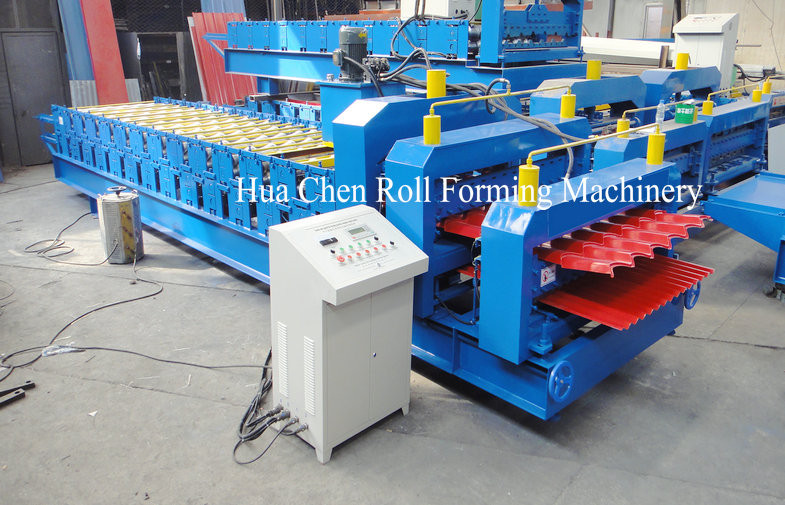

Steel Structure Metal corrugated double layer roll forming machine

Steel Structure Metal corrugated double layer roll forming machine
Steel Structure Metal corrugated double layer roll forming machine Steel Structure Metal corrugated double layer roll forming machine Steel Structure Metal corrugated double layer roll forming machine Steel Structure Metal corrugated double layer roll forming machine Steel Structure Metal corrugated double layer roll forming machine

Gambar besar :  Steel Structure Metal corrugated double layer roll forming machine

Detail produk:
Tempat asal: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Nomor model: HC35/18
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: 25000USD
Kemasan rincian: Main machine is nude,the computer control box is packed by carton box
Waktu pengiriman: 30days
Syarat-syarat pembayaran: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Menyediakan kemampuan: 20 sets/month

Steel Structure Metal corrugated double layer roll forming machine

Deskripsi
Material: PPGI GI Thickness: 0.3-0.6mm
width: custom feature: two in one
capacity: 8-10m/min warranty: 1 year
Cahaya Tinggi:

metal roll forming machine

,

corrugated roll forming machine

Steel Structure Metal corrugated double layer roll forming machine

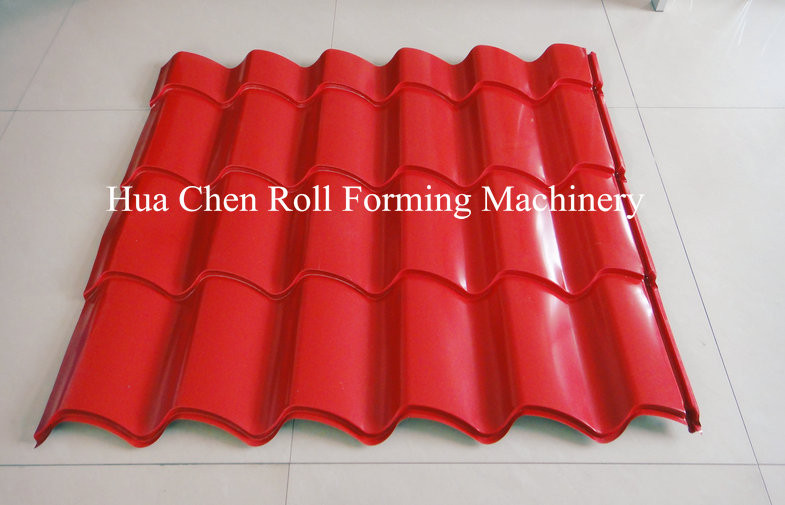

This type of roof sheet has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

SPECIFICATIONS FOR ROLL FORMING MACHINE

Main roll forming machine
Raw material width
mm
1200
Power supply
V
380 V / 50 HZ
Working Speed
m/min
8-15


Motor power
Main motor power
kw
4
Hydraulic Station Power
kw
4
Hydraulic Station Pressure
Mpa
12

Otehrs
Electrical Control System
PLC brand
Panasonic Japan
Material Thickness
mm
0.25-0.38mm
Cutting accuracy
mm
±2

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 15/12 rows

4. Dimensions: 9.6*1.55*1.91m

5. Power: 4+4kw

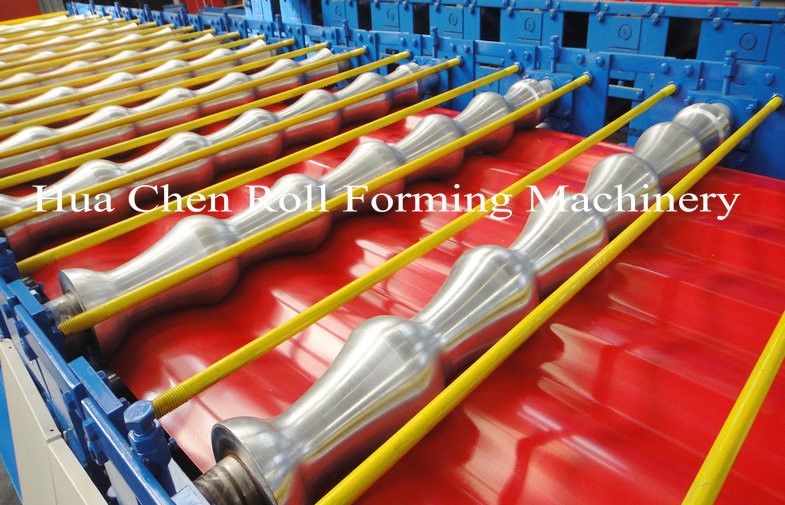

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Double layer glazed tile roll forming machine Main parameter

No.

 Main parameter of Double layer glazed tile roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :15 rows

Down level :12 rows

4

Dimensions

9600*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

upper level :4m/min

Down level:20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- press form-cutting

Steel Structure Metal corrugated double layer roll forming machine 0Steel Structure Metal corrugated double layer roll forming machine 1Steel Structure Metal corrugated double layer roll forming machine 2Steel Structure Metal corrugated double layer roll forming machine 3

Main Features

1)We can promise the tolerance to be 0.8mm due to 18 sets CNC machines on site. All the rollers and shafts are solid.

2)We have 16 engineers with more than 10 years experience to offer the most popular solutions.

3)22 installation engineers can go to your site within 7 days.

4)12 months maintenance and whole life technical support.

5)We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.





Application

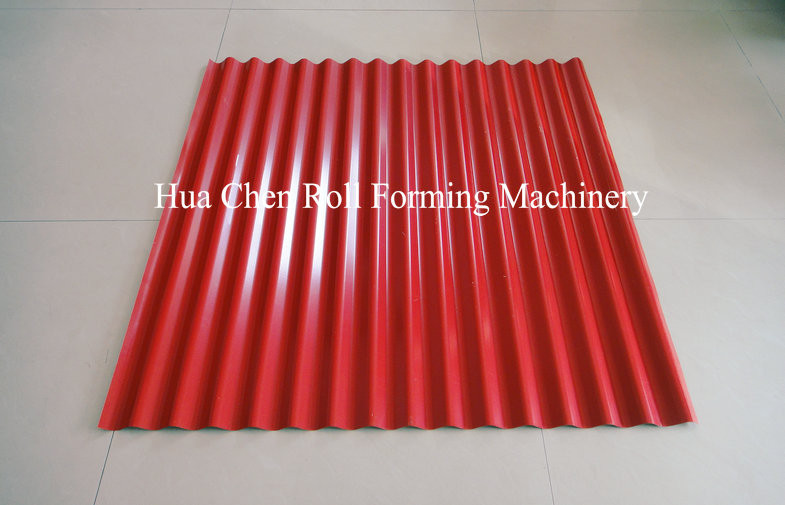

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site





Competitive Advantage



1. Pretty appearance

2. Various special model

3. mature foreign trade team

4. professional designing team

5. Lifetime maintenance
