Detail produk:
|
| Thickness: | 0.3-0.6mm | Speed: | 4m/min |
|---|---|---|---|
| type: | cold roll forming | Design: | custom |
| warranty: | 1 year | life time: | 10 years |
| Cahaya Tinggi: | roll forming equipment,cold roll forming machine |
||

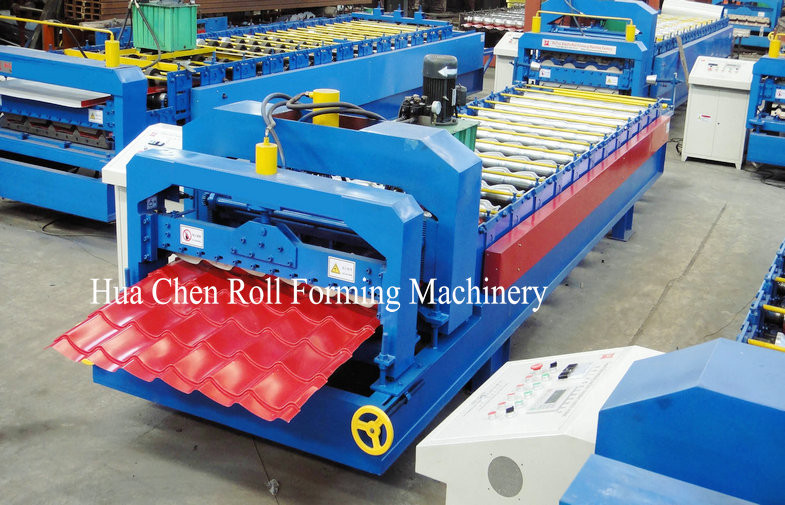

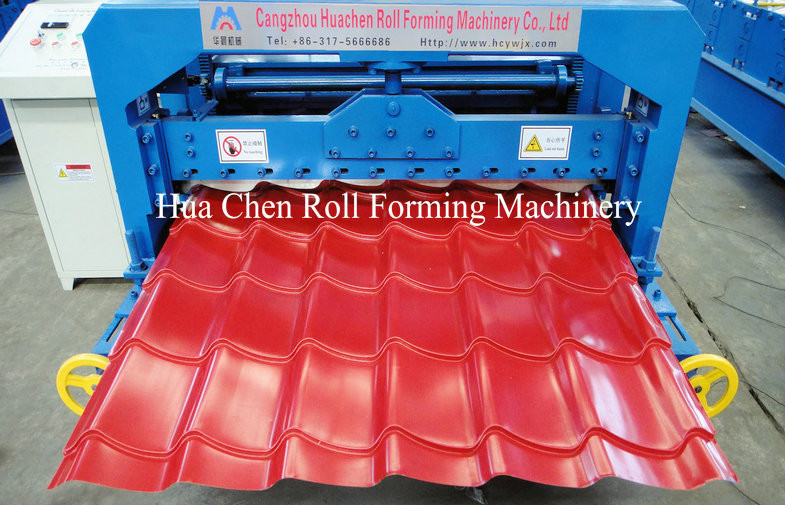

HC Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 15 rows
4. Dimensions: 8.2*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
| Specifications: | ||
| No. | Item | Description |
| 1 | Model No. | HKY |
| 2 | Suitable material | Color steel sheet ,galvanized steel sheet, Aluminum sheet |
| 3 | Working speed | 4-6m/min |
| 4 | Main motor power | 5.5kw with cycloidal reducer |
| 5 | Hydraulic station power | 4kw |
| 6 | Electrical control system | PLC control system with famous brand |
| 7 | Thickness of material | 0.25mm~0.8mm |
| 8 | Shaft diameter | 95mm |
| 9 | Roller station | 13 stations |
| 10 | Material expand axis | 1000&1200mm&1250mm |
| 11 | Dimension | 6500x1500x1500mm |
| 12 | Driving mode | Chain |
| 13 | Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 14 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 15 | Material of cutting | Cr12 mould steel with quenched treatment |
| 16 | Working time | Can be 24 hours |
| 17 | Workers | 1-2 only |
Description:
Roof Tile Roll Forming Machine Main parameter
|
No. |
Main parameter of Glazed Tile Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250mm |
|
3 |

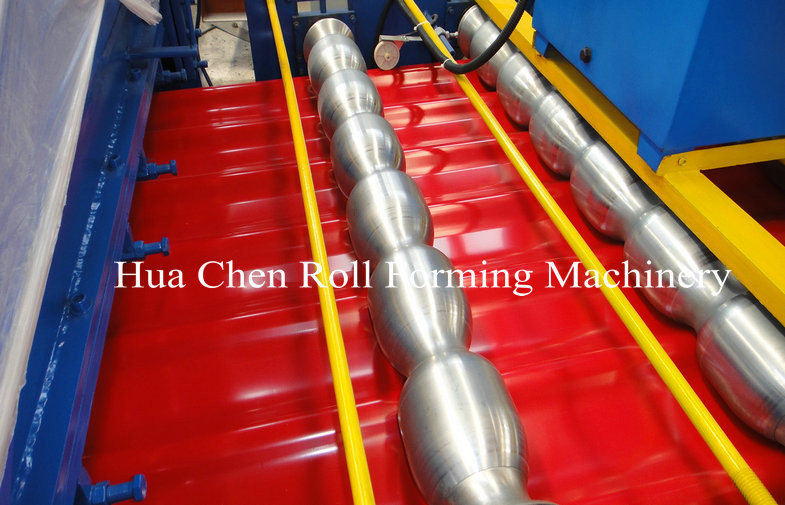

Rollers |
15 rows |
|
4 |
Dimensions |
8200*1550*1510m |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

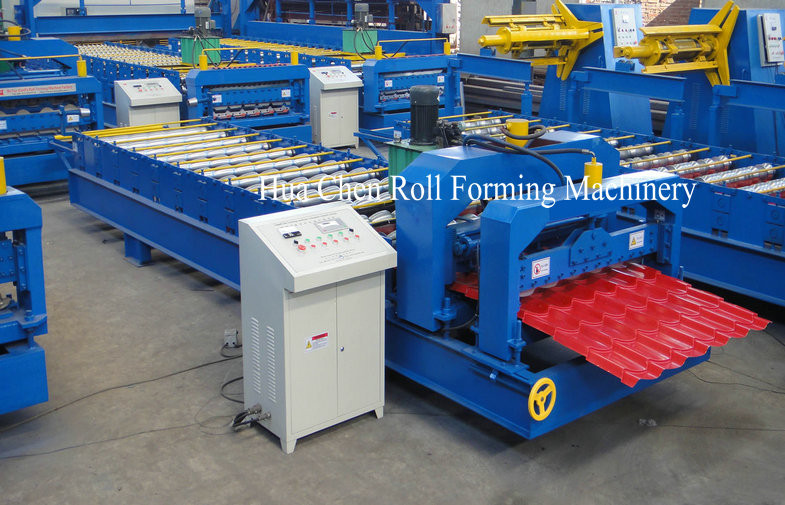

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting

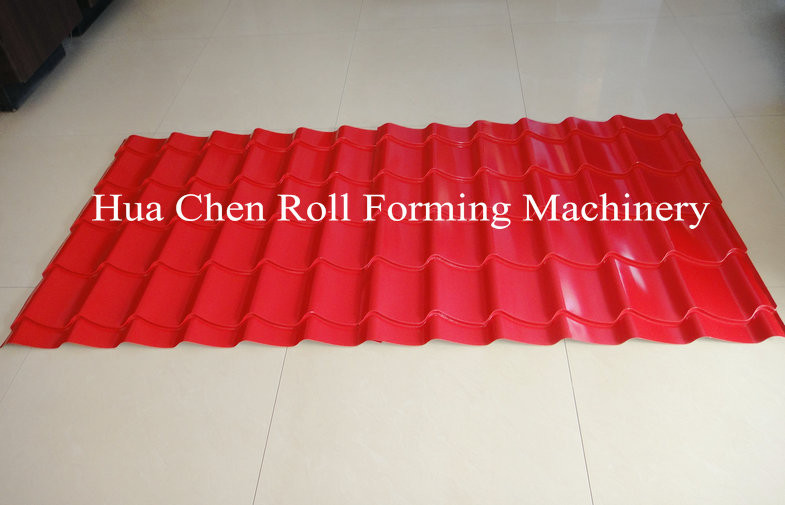

Application
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
What is Service?
|
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $100/days |
How is payment?
|
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine in seller's factory before delivery ) |
