Gear Box Drive Rainwater Pipe Forming Machine 7 Rollers 0 - 70 mtr / min Speed

Cina Gear Box Drive Rainwater Pipe Forming Machine 7 Rollers 0 - 70 mtr / min Speed pemasok

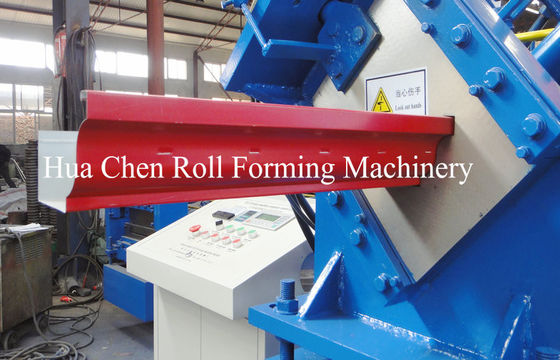

Gambar besar :  Gear Box Drive Rainwater Pipe Forming Machine 7 Rollers 0 - 70 mtr / min Speed

Detail produk:

Place of Origin: Botou Hebei China
Nama merek: HC
Sertifikasi: ISO
Model Number: HC285

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1set
Harga: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detil Deskripsi produk

Gear Box Drive Rainwater Pipe Forming Machine 7 Rollers 0 - 70 mtr / min Speed



Specification

Article No. Item Name Specification
1 Width of feeding material 1000mm coil sheet
2 Thickness of feeding material 0.3mm-0.8mm coil sheet
3 Roller station 2-15 stations
4 Shaft Diameter 75-95mm
5 Productivity 8-12m/min
6 Rollers' material 45# steel forge
7 Shaft material 45# steel
8 Weight 2.5-8 ton
9 length 5.5 m-11m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 8 Tons
13 Motor 3kw-15kw
14 Driving way Gear box transmission
15 Chain size 0.6 inch-2 inch
16 Cutting system Hydraulic cutter



Description

Mainly used for decoration, products, appliances stainless steel pipe and carbon steel (round tube, squre tube, shaped tube) production.







Main components



1.Uncoiler

I.D. of steel strip: Φ600~Φ800mm

O.D of steel strip: Φ1800mm

2.shearing and butt-welding

insure two-coiled steel strips shearing tidily and then welding together and leveling weld seam.

3.Hoop cage

Usage: ensure main machine to run continuously while welding two coiled strips.Accumulating volume: 300m.

4. Feeding device

Vertical guide roll: one pair

Roller for leveling: 7 Rollers

5. Forming device

O.D.: φ60~φ165mm

Wall thickness: 1.5~5.0mm

6. Guide device

two rollers and with pieces for guiding in the middle.

7. Cooling device

Cooling tube

8. Sizing device

Diameter of the pipe: φ60~φ165mm

Wall thickness: 1.5~5.0mm

9.Straightening machine

It is mainly used for straightening of finished pipe roughly online.

10. Computer-controlled cutting saw

Maximum running speed of the vehicle: 60 m/min

Cutting diameter: φ60~φ165mm

Cutting thickness: ≤5.0mm

Cutting tolerance: 0~6 mm

Maximum Cutting speed :6 times/min

11. Solid State H.F. Welder

Solid State type, include Rectifier cabinet, Inverter cabinet, transformer, control panel, cooling system

12. Transmission system

It’s DC Motor with speed reducer, through gearboxes and universal joints to drive forming and sizing unit

13. Runout Conveyor

Move out finished steel tubes

14. Roller set

Order according to tube sizes

Advantage

1. Any small problems will be solved at the most prompt time.

2. We always offer relateive technical support,quick response,all your inquire will replied within 24 hours.

3. We can delivery your goods within 25 workdays.

4. OEM service.



Gear Box Drive Rainwater Pipe Forming Machine 7 Rollers 0 - 70 mtr / min SpeedGear Box Drive Rainwater Pipe Forming Machine 7 Rollers 0 - 70 mtr / min Speed
